CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

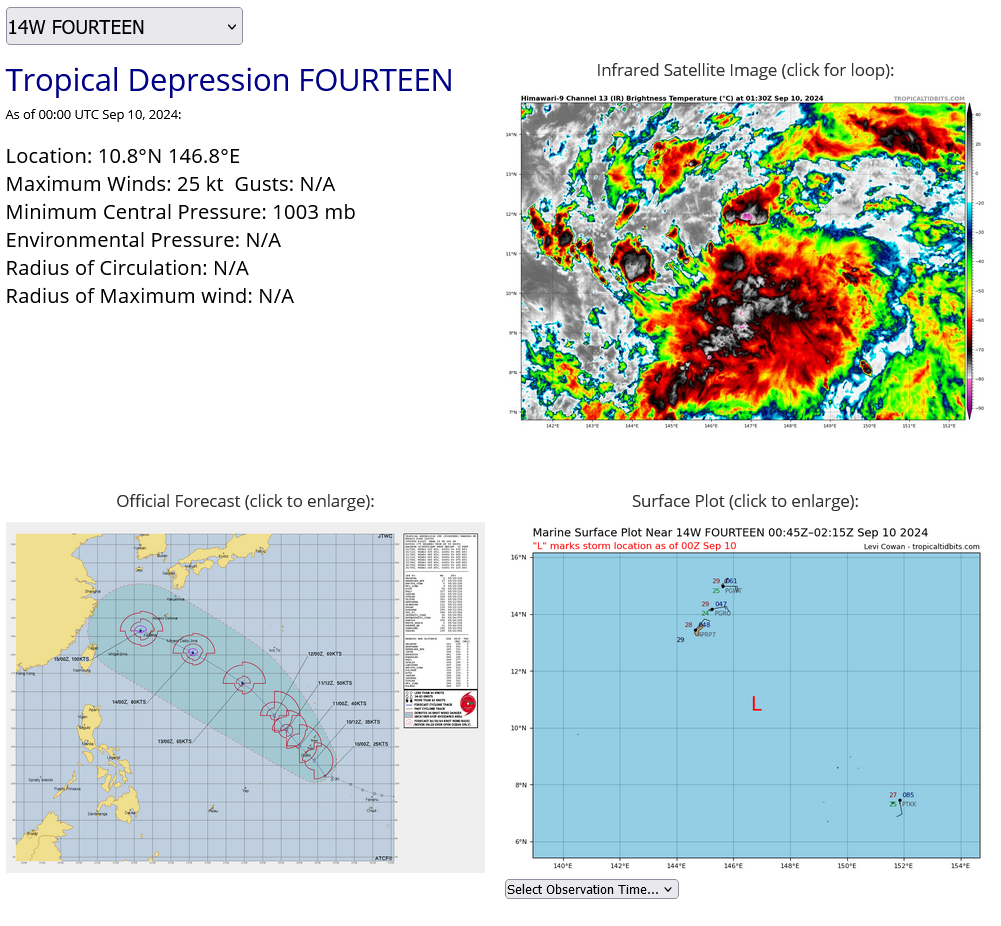

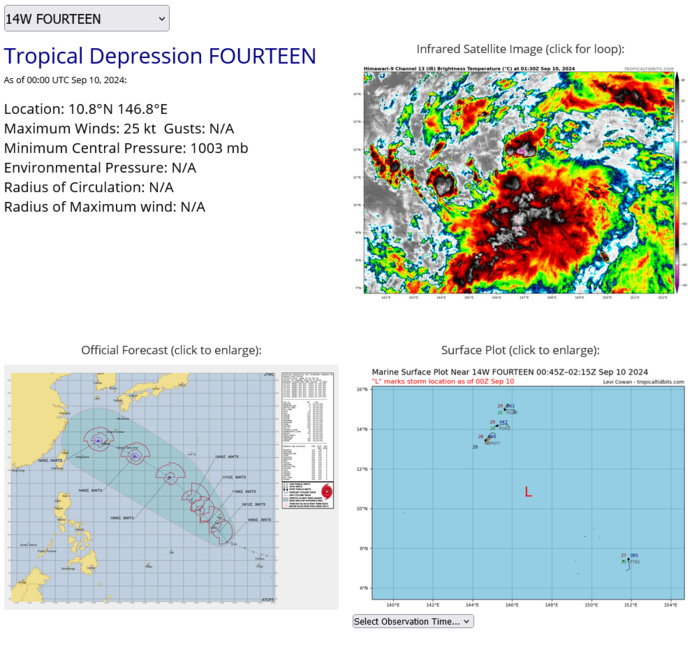

WESTERN NORTH PACIFIC: TD 14W. 10/00UTC ESTIMATED LOCATION AND INTENSITY. INTENSITY IS 25 KNOTS: + 10 KNOTS OVER 24 HOURS
1424090518 68N1647E 15
1424090600 70N1640E 15
1424090606 73N1630E 15
1424090612 77N1617E 15
1424090618 81N1604E 15
1424090700 82N1590E 15
1424090706 84N1575E 15
1424090712 86N1559E 15
1424090718 86N1544E 15
1424090800 87N1530E 20
1424090806 89N1522E 15
1424090812 93N1509E 15
1424090818 99N1496E 20
1424090900 105N1482E 15
1424090906 105N1480E 15
1424090912 104N1476E 20
1424090918 107N1476E 20
1424091000 108N1468E 25
WARNING 1 ISSUED AT 10/03UTC

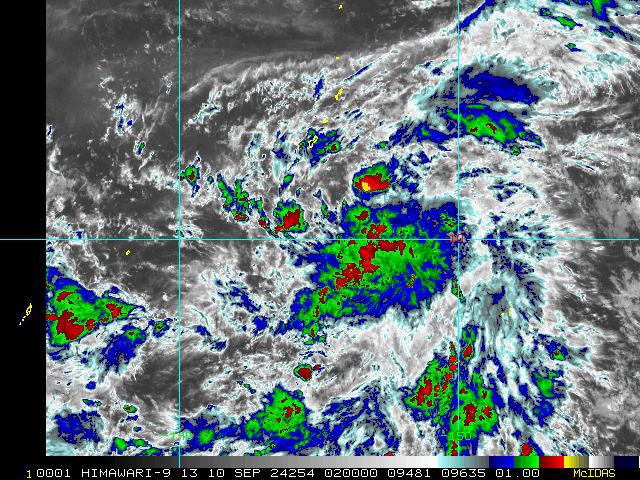

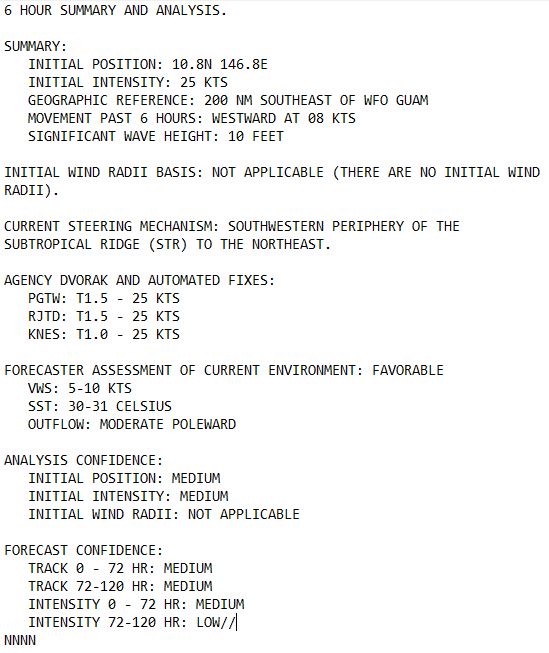

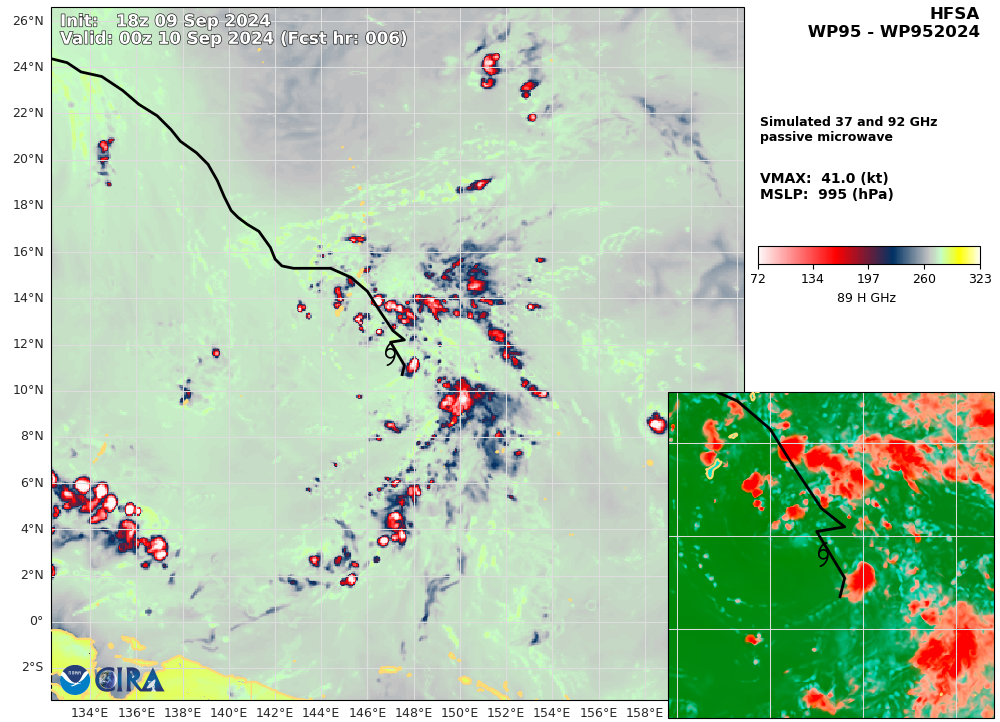

SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS PERSISTENT FLARING AND DEEP CONVECTION DIRECTLY OVER THE LOW-LEVEL CIRCULATION CENTER (LLCC) OF TROPICAL DEPRESSION (TD) 14W. LOW-LEVEL CONVECTIVE BANDS HAVE STARTED TO ORGANIZE ALONG THE WESTERN PERIPHERY OF THE BROAD CYCLONIC FLOW OVER THE LAST FEW HOURS, WHILE OBSERVABLE UPPER-LEVEL POLEWARD OUTFLOW HAS CONTINUED TO AID AND IMPROVE THE OVERALL CONSOLIDATION TD 14W. THE INITIAL POSITION IS PLACED WITH MEDIUM CONFIDENCE BASED ON THE 092313Z 89 GHZ GPM MICROWAVE IMAGE SHOWING IMPROVED LOW-LEVEL CONVECTIVE CLOUD LINES CURVING INTO THE ASSESSED POSITION. THE INITIAL INTENSITY IS ASSESSED WITH MEDIUM CONFIDENCE BASED ON A PARTIAL 092257Z ASCAT-B IMAGE SHOWING A SWATH OF 25 KTS INTENSITIES THROUGHOUT THE EASTERN SEMICIRCLE AND AGENCY ESTIMATES LISTED.

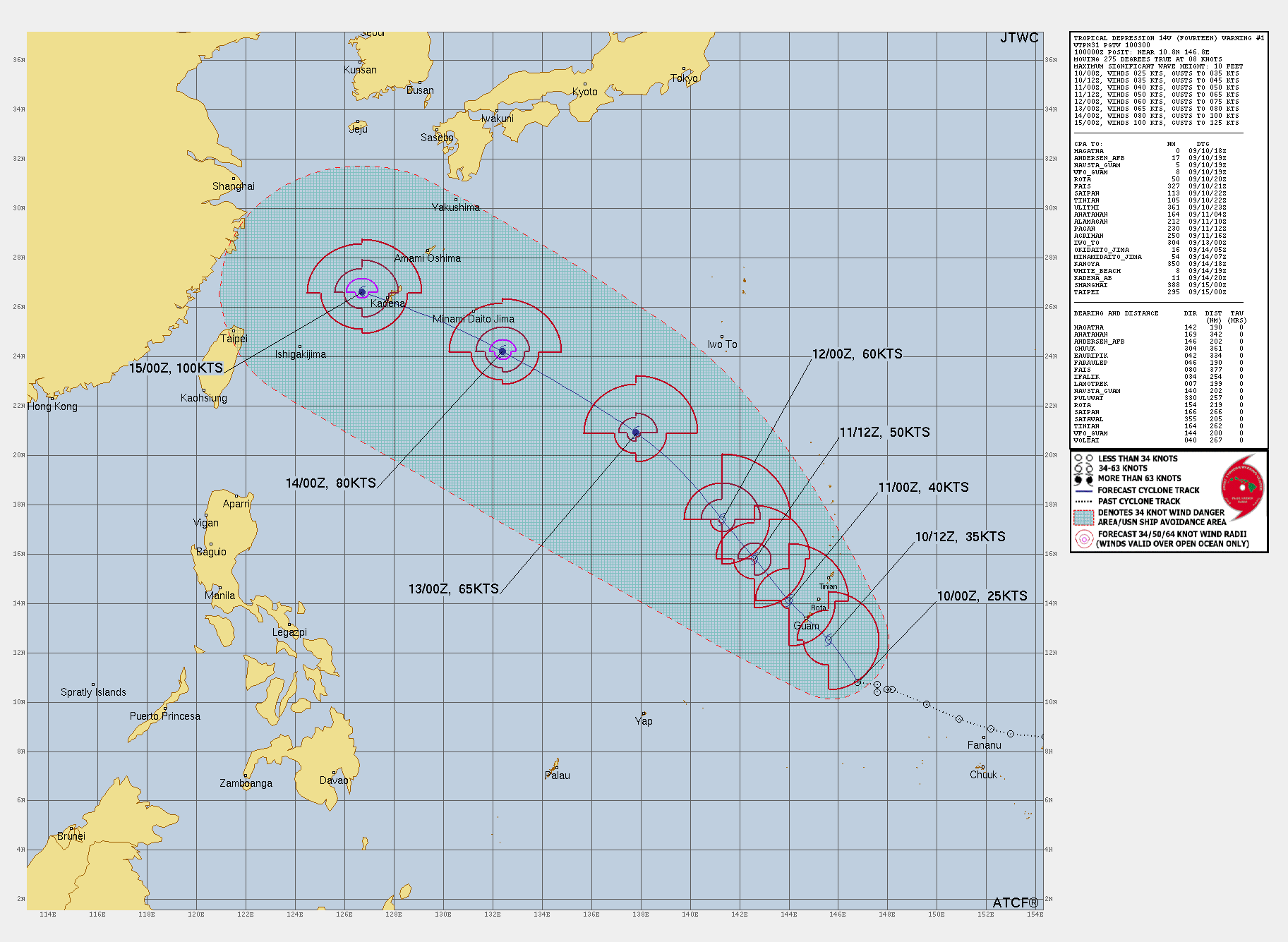

TC Warning Graphic
FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THIS INITIAL PROGNOSTIC REASONING MESSAGE ESTABLISHES THE FORECAST PHILOSOPHY. FORECAST DISCUSSION: TD 14W WILL TRACK GENERALLY NORTHWESTWARD THROUGHOUT THE FORECAST PERIOD ALONG THE WESTERN PERIPHERY OF THE SUBTROPICAL RIDGE. THE SYSTEM IS EXPECTED TO STEADILY INTENSIFY THROUGH TAU 72 AS THE ENVIRONMENT REMAINS CONDUCIVE FOR FURTHER DEVELOPMENT WITH VERTICAL WIND SHEAR (VWS) REMAINING LESS THAN 15 KTS, SEA SURFACE TEMPERATURES MAINTAIN AVERAGES ABOVE 30 C, AND UPPER-LEVEL OUTFLOW AIDS IN SUSTAINED INTENSIFICATION. AS THE SYSTEM CONTINUES TO TRACK TO THE NORTHWEST ALONG THE WESTERN EDGE OF THE STEERING RIDGE, A CONTINUED CONDUCIVE ENVIRONMENT WILL ALLOW TD 14W TO MAINTAIN STEADY TO MODERATE INTENSIFICATION WITH ASSOCIATED SUPPORTIVE OCEAN HEAT CONTENT (OHC) VALUES THROUGH THE CORRIDOR TO MINAMI DAITO JIMA. FOLLOWING TAU 72, MODERATE INTENSIFICATION TO 100 KTS BY TAU 120 IS FORECASTED AS THE SYSTEM ACCELERATES NORTHWESTWARD AS IT APPROACHES KADENA WITH IMPROVING UPPER-LEVEL POLEWARD OUTFLOW.

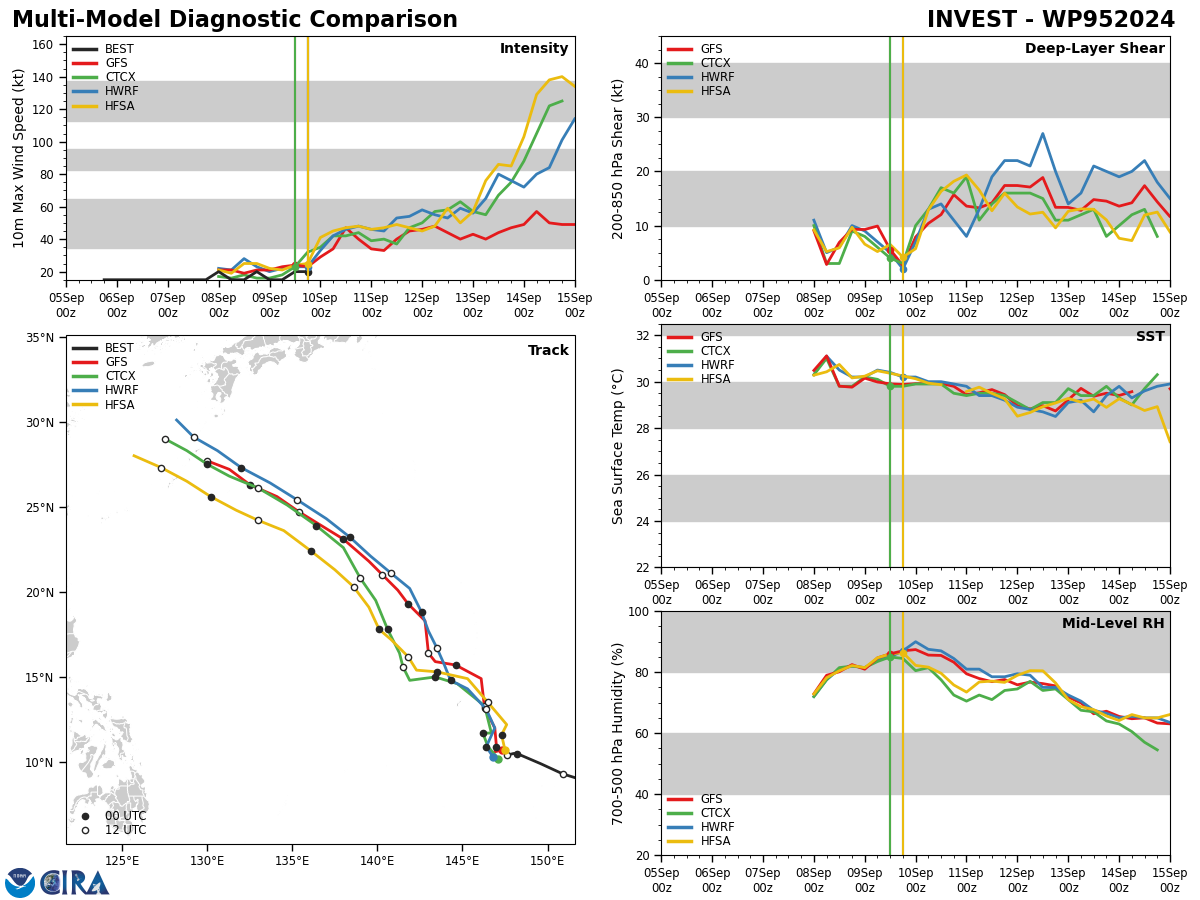

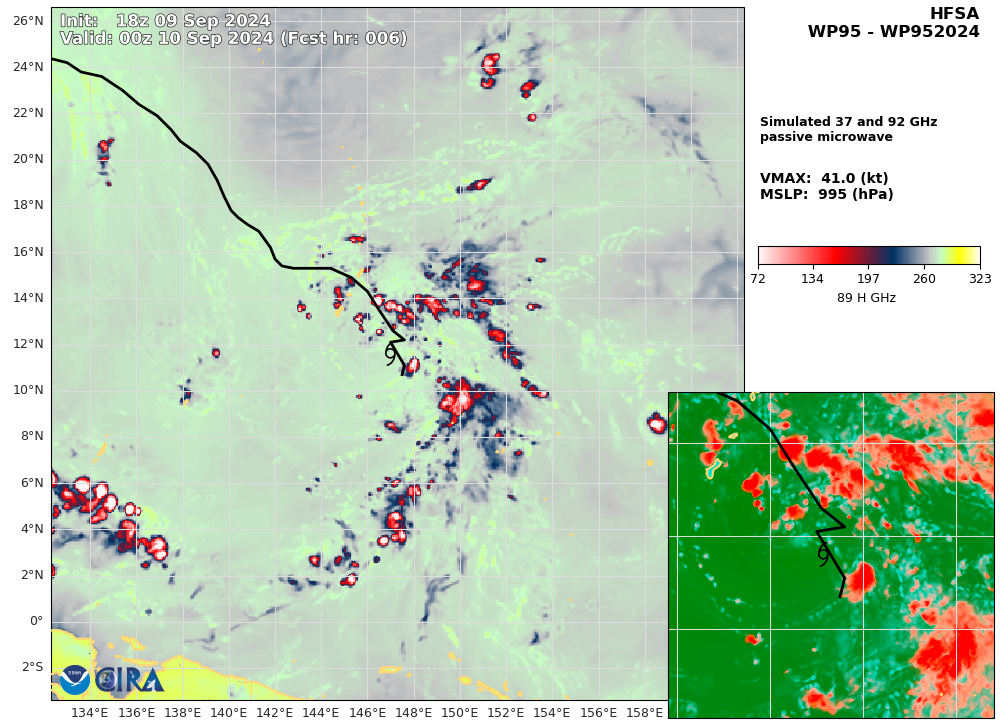

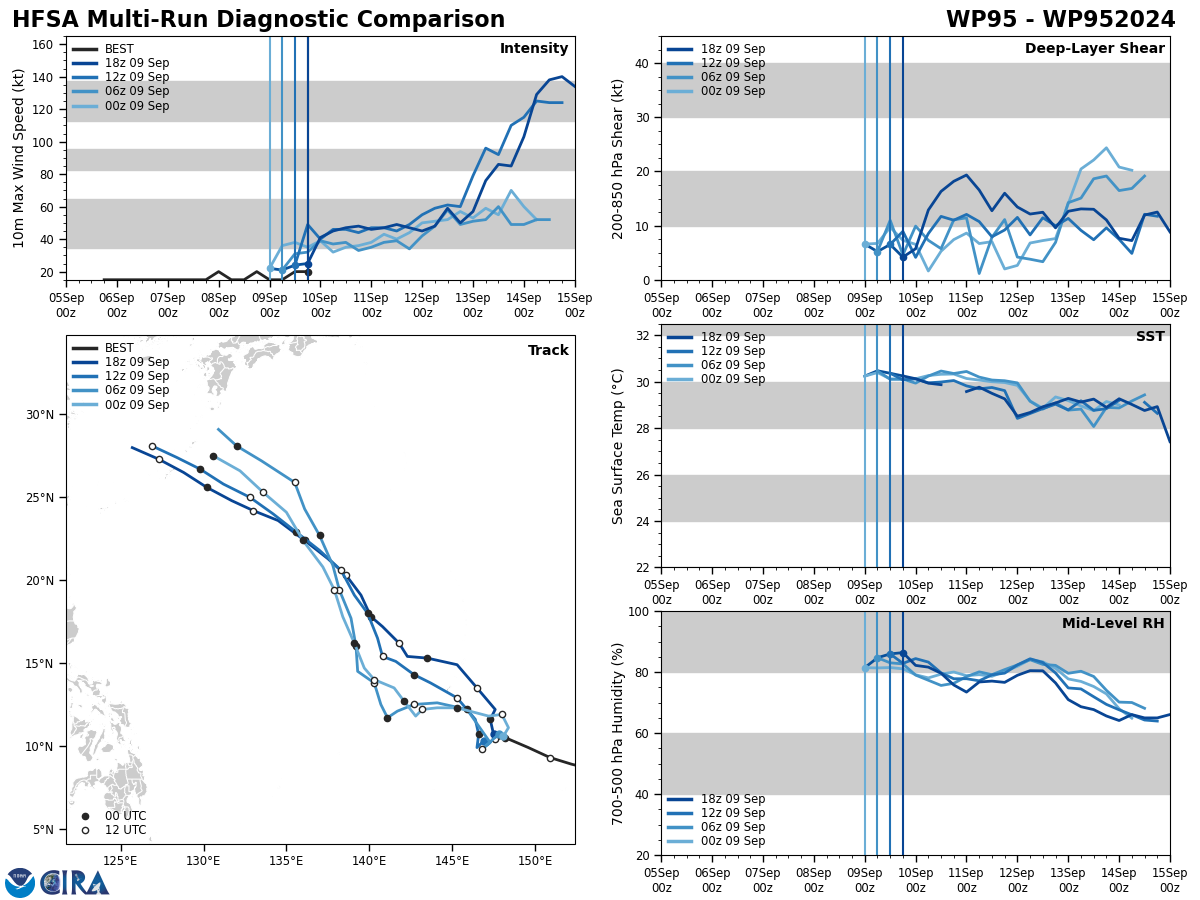

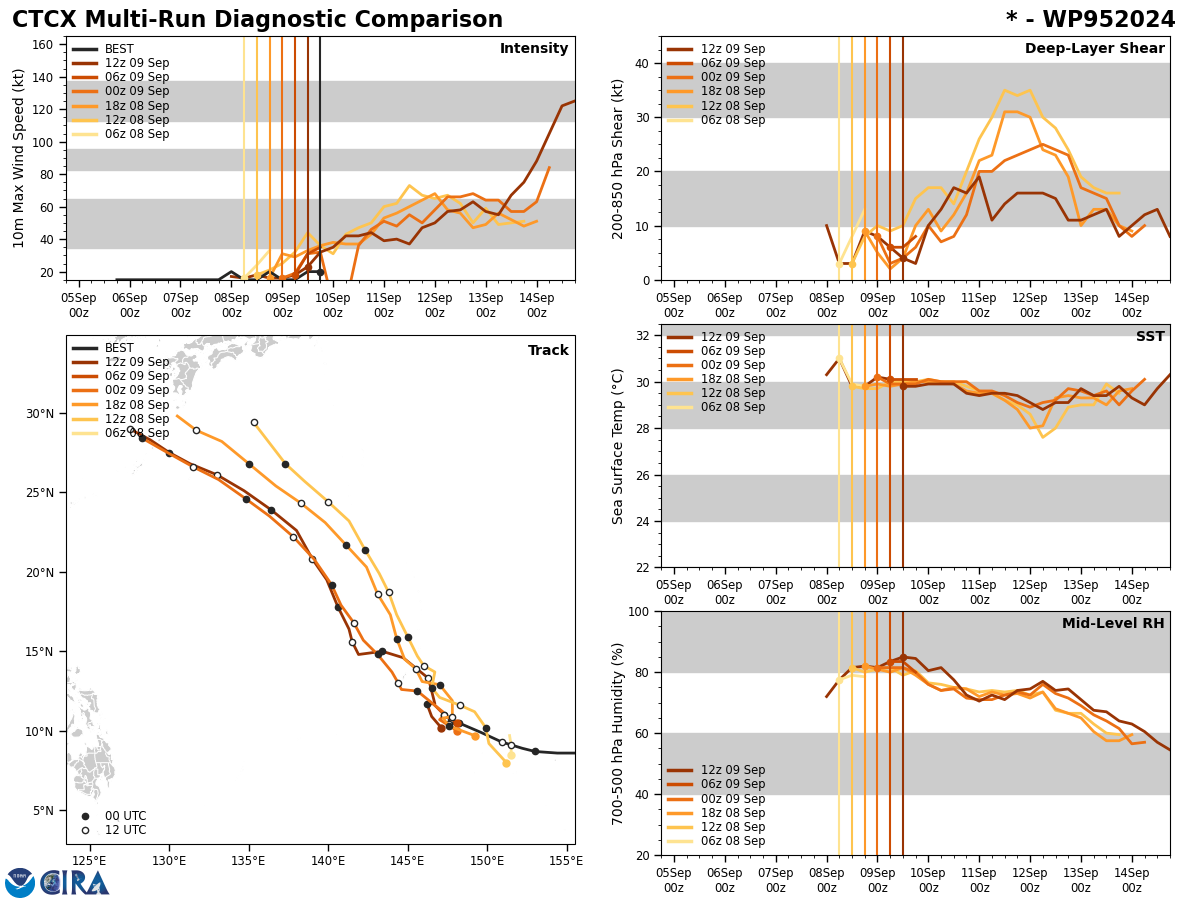

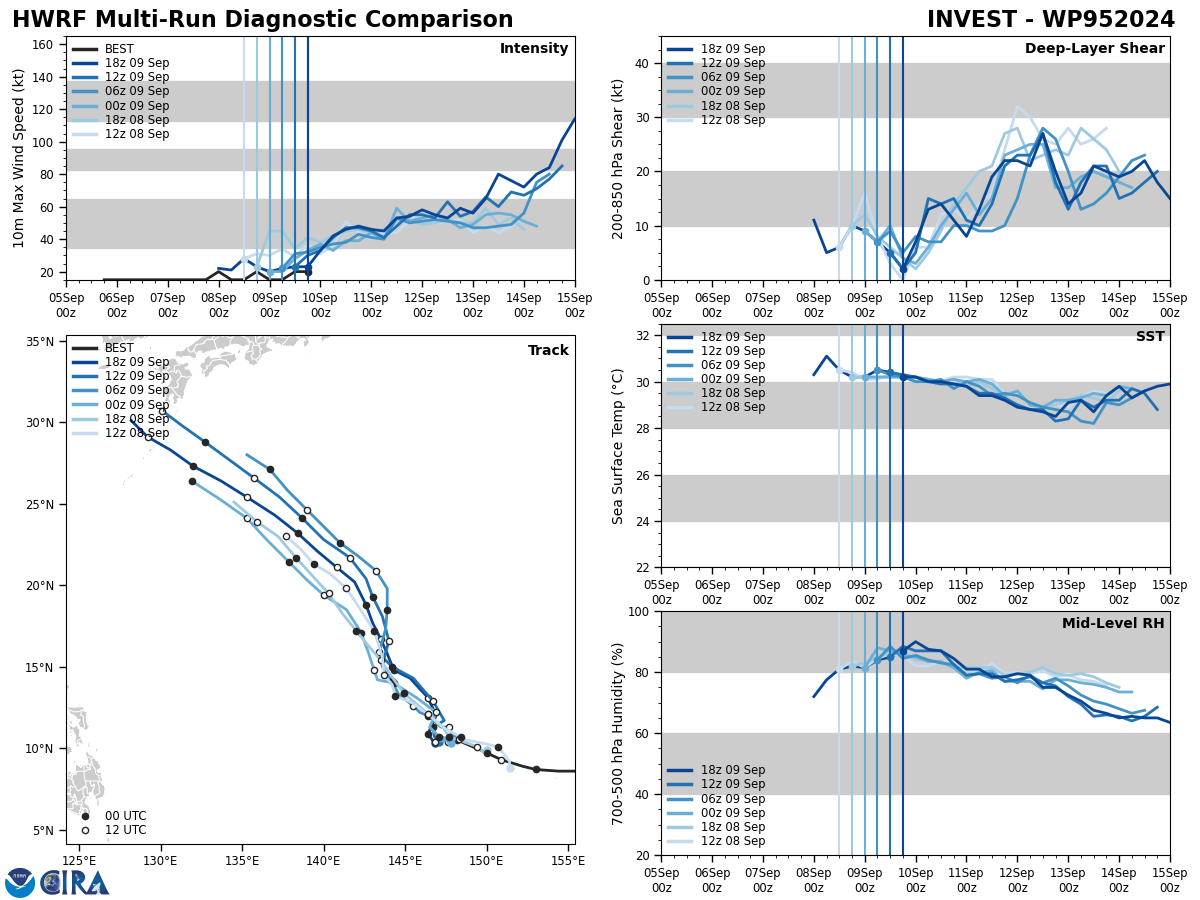

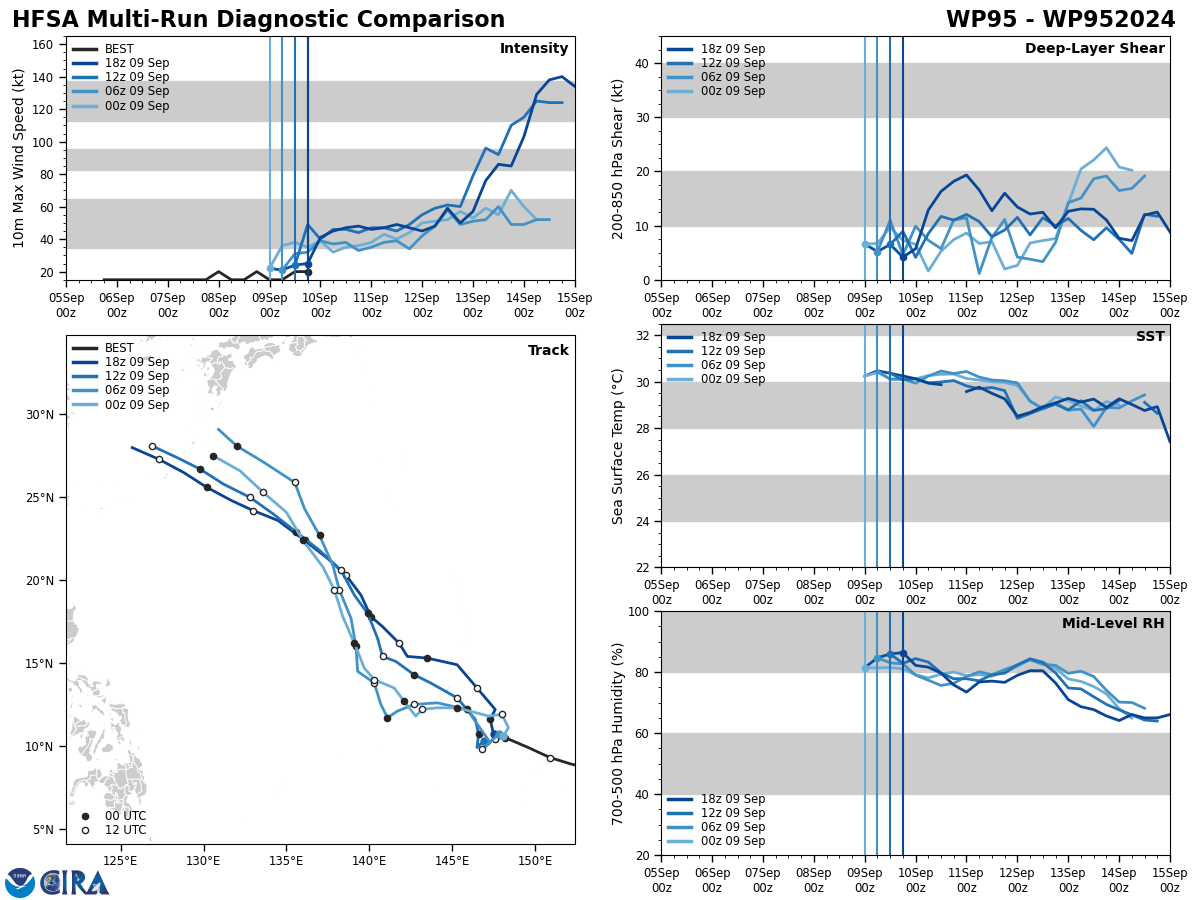

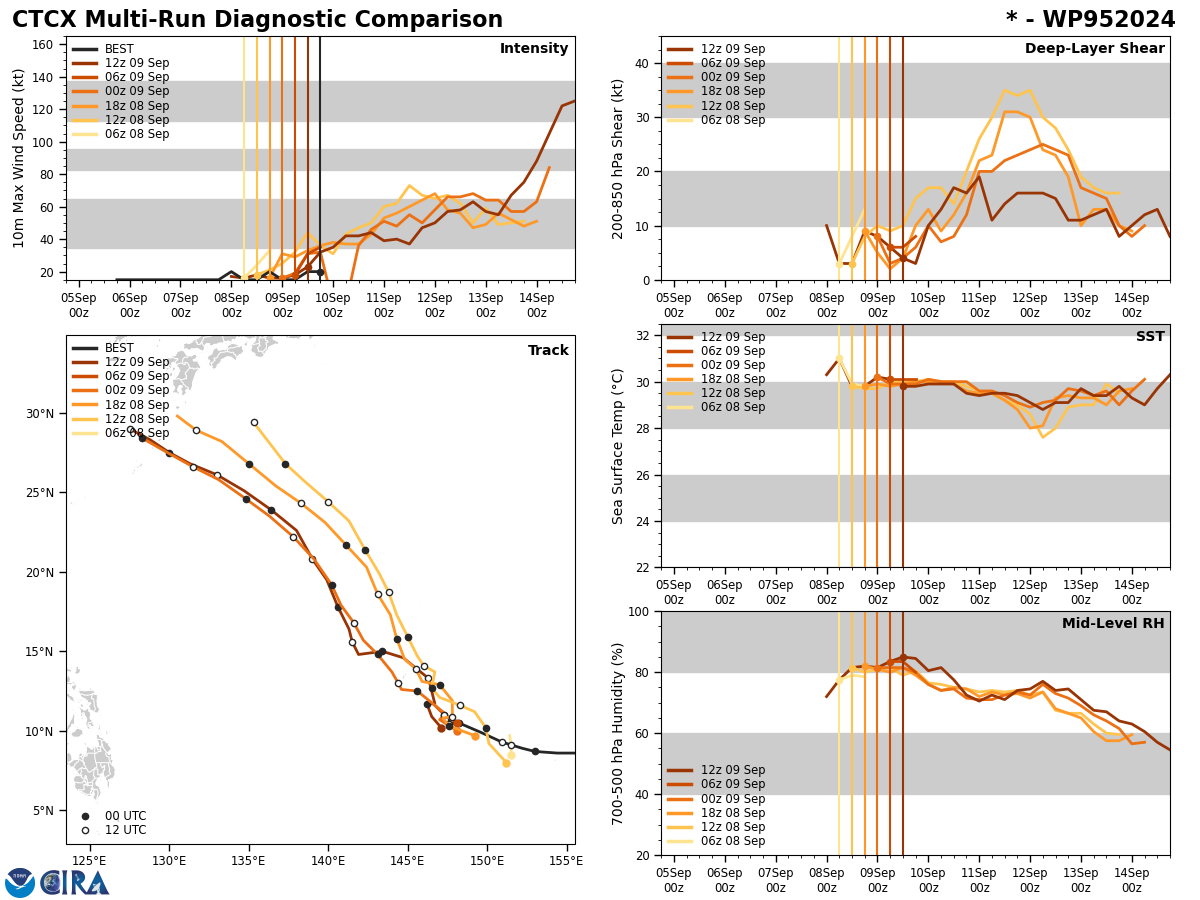

Model Diagnostic Plot
MODEL DISCUSSION: DETERMINISTIC MODEL GUIDANCE USED IN THE JTWC CONSENSUS (CONW) REMAINS IN MODERATE AGREEMENT WITH A CROSS-TRACK SPREAD OF 130 NM BY TAU 72, INCREASING TO 135 NM BY TAU 120. PROBABILISTIC GUIDANCE FROM ECMWF (EPS) AND GFS (GEFS) ENSEMBLES ARE IN GOOD AGREEMENT THAT A GENERALLY NORTHWEST TRACK WILL CONTINUE THROUGHOUT THE 120 HOUR FORECAST PERIOD, LENDING MEDIUM CONFIDENCE TO THE JTWC TRACK FORECAST. INTENSITY GUIDANCE REMAINS IN MEDIUM CONFIDENCE THROUGH TAU 72, AS STEADY TO MODERATE INTENSIFICATION IS EXPECTED, HOWEVER, DETERMINISTIC INTENSITY GUIDANCE PAST 72 HOURS BECOMES LESS RELIABLE AS GFS HAS ILLUSTRATED A MAX INTENSITY OF ONLY 55 KTS AT TAU 120. THE JTWC INTENSITY FORECAST IS MORE ALIGNED WITH THE COAMPS-TC EPS INTENSITY GUIDANCE, WITH STEADY TO MODERATE INTENSIFICATION FORECASTED INTO TAU 84, WHILE A PERIOD OF RAPID INTENSIFICATION WITH PROBABILITIES OF HIGHER 60 PERCENT IS EXPECTED AFTER TAU 84, LENDING LOW CONFIDENCE BETWEEN TAU 72 AND TAU 120.
(239.03 KB)

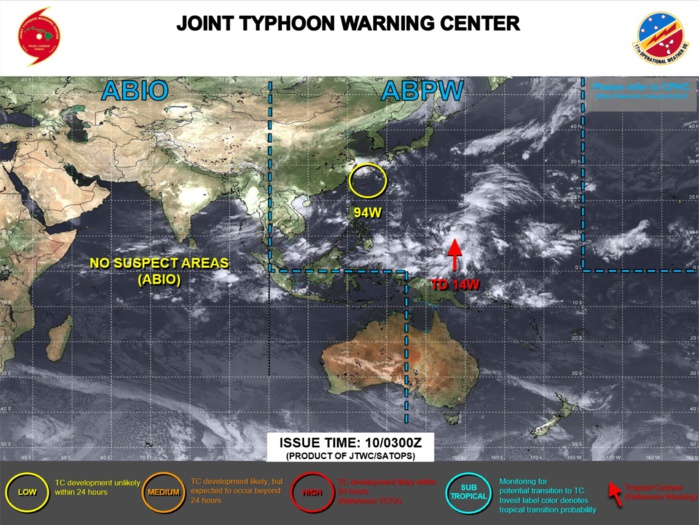

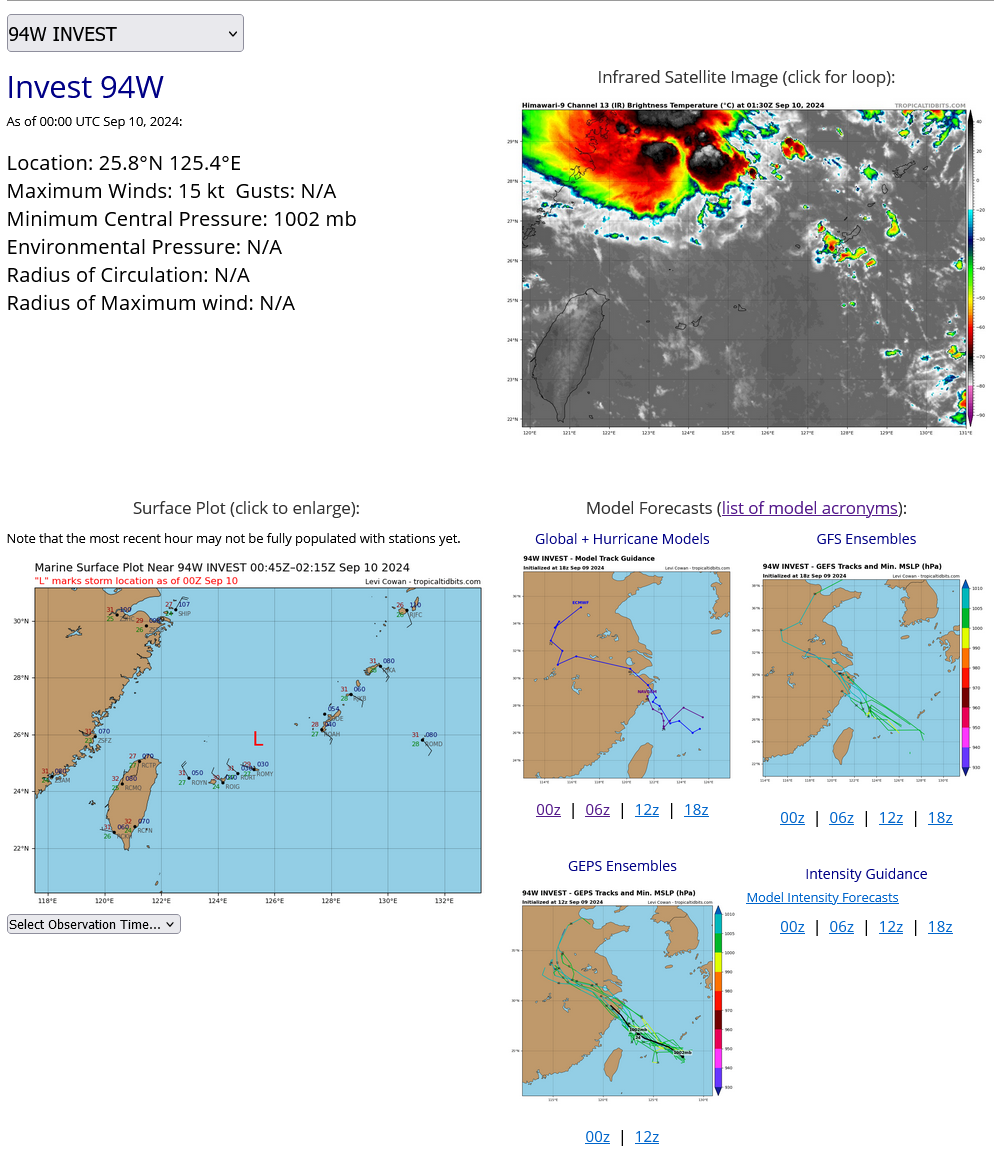

WESTERN NORTH PACIFIC: INVEST 94W. 10/00UTC ESTIMATED LOCATION AND INTENSITY. INTENSITY IS 15 KNOTS. 10/03UTC ADVISORY.

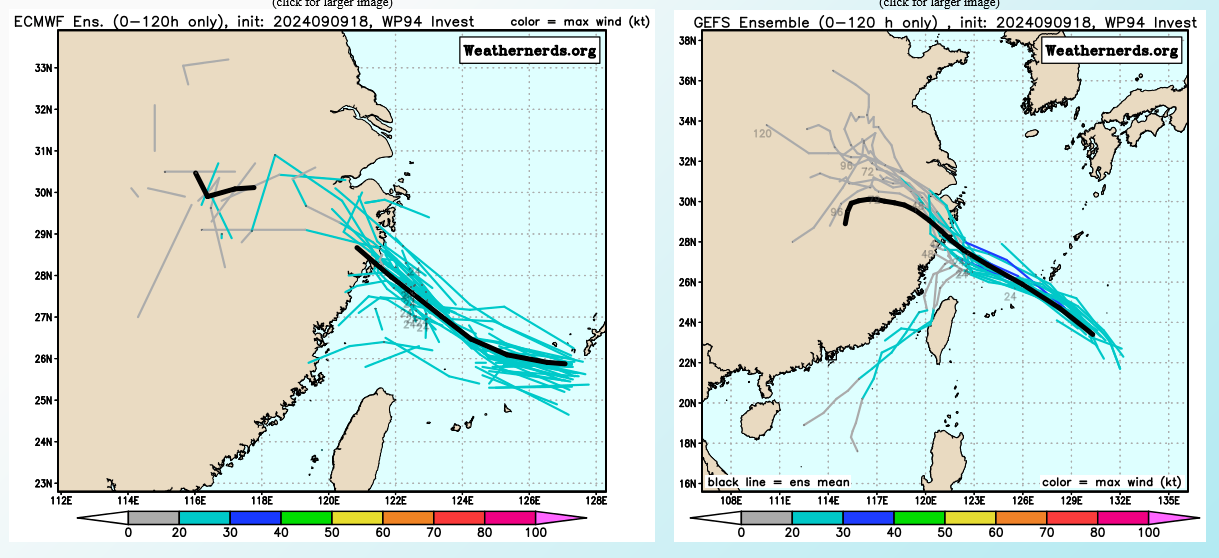

THE AREA OF CONVECTION (INVEST 94W) PREVIOUSLY LOCATED NEAR 23.4N 131.5E IS NOW LOCATED NEAR 25.8N 125.4E, APPROXIMATELY 129 NM WEST-SOUTHWEST OF KADENA. THE SYSTEM IS CURRENTLY CLASSIFIED AS A MONSOON DEPRESSION-LIKE SYSTEM, GENERALLY CHARACTERIZED AS A LARGE CYCLONIC CIRCULATION, WITH A RADIUS OF MAXIMUM WINDS GREATER THAN 100NM AND THE HIGHEST WINDS CONFINED TO THE NORTHWESTERN PERIPHERY OF THE CIRCULATION AND A WEAK CORE OF LIGHT WINDS. ANIMATED ENHANCED INFRARED IMAGERY DEPICT NO WELL-DEFINED LOW LEVEL CIRCULATION CENTER (LLCC), BUT RATHER A LARGE AREA OF ROTATION. A 092224Z SSMIS2 F-16 91 GHZ MICROWAVE IMAGE DEPICT FRAGMENTED CURVED CONVECTIVE BANDING OVER THE NORTHWESTERN SEMICIRCLE OF THE BROAD CIRCULATION. ENVIRONMENTAL ANALYSIS INDICATES THE 94W IS IN A FAVORABLE ENVIRONMENT FOR DEVELOPMENT WITH MODERATE VERTICAL WIND SHEAR OF 15-20 KNOTS, GOOD EASTWARD AND WESTWARD OUTFLOW ALOFT. LASTLY, WARM SEA SURFACE TEMPERATURES OF 29-30 DEGREES C. GLOBAL MODEL GUIDANCE CONTINUE TO SUGGEST THIS SYSTEM WILL CONTINUE TO TRACK WEST-NORTHWESTWARD TOWARDS THE RYUKYU ISLANDS AND DEVELOP SOME ENHANCED WINDS ALONG THE NORTHWESTERN PERIPHERY, BUT LIKELY FAIL TO SHOW TYPICAL TROPICAL CYCLONE FEATURES. FOR HAZARDS AND WARNINGS, REFERENCE THE FLEET WEATHER CENTER SAN DIEGO HIGH WINDS AND SEAS PRODUCT OR REFER TO LOCAL WMO DESIGNATED FORECAST AUTHORITY. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 13 TO 18 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1002 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS LOW.
GLOBAL MODEL GUIDANCE CONTINUE TO SUGGEST THIS SYSTEM WILL CONTINUE TO TRACK WEST-NORTHWESTWARD TOWARDS THE RYUKYU ISLANDS AND DEVELOP SOME ENHANCED WINDS ALONG THE NORTHWESTERN PERIPHERY, BUT LIKELY FAIL TO SHOW TYPICAL TROPICAL CYCLONE FEATURES.

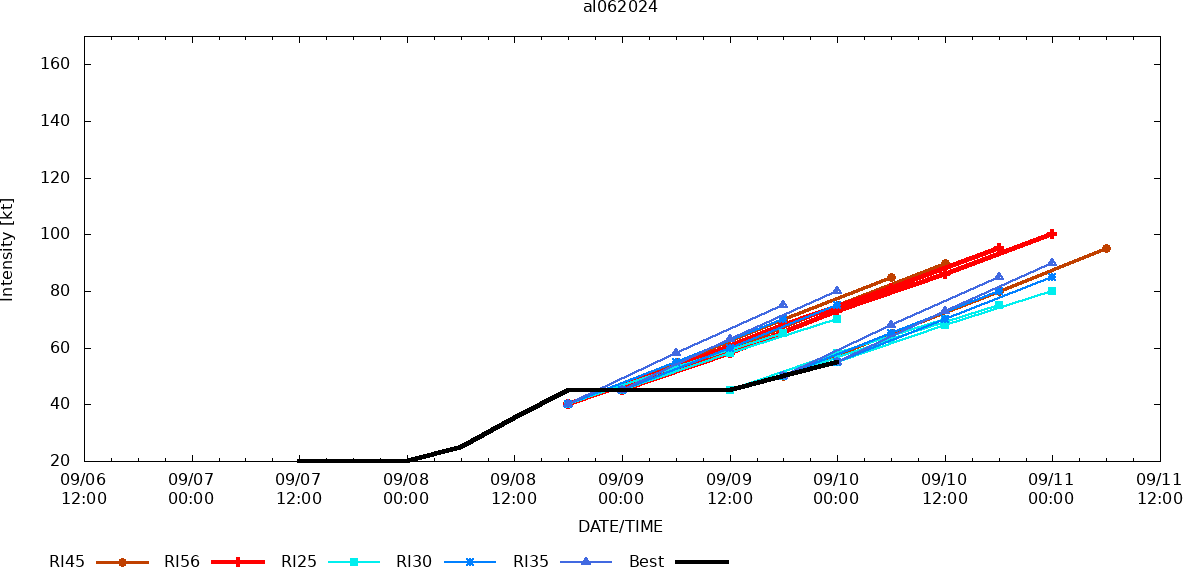

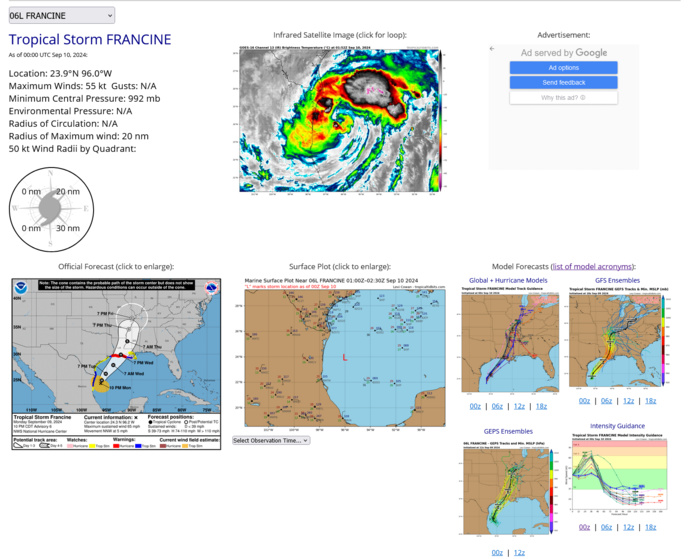

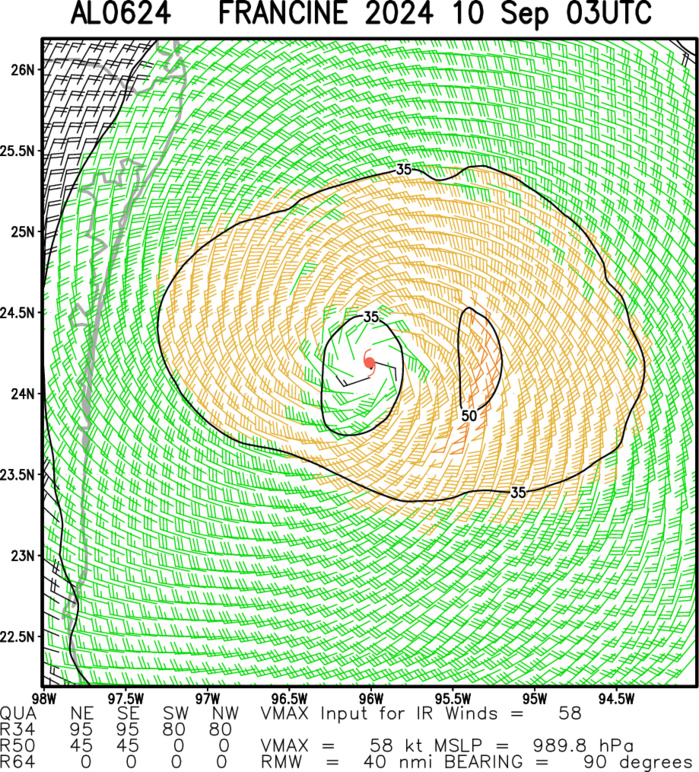

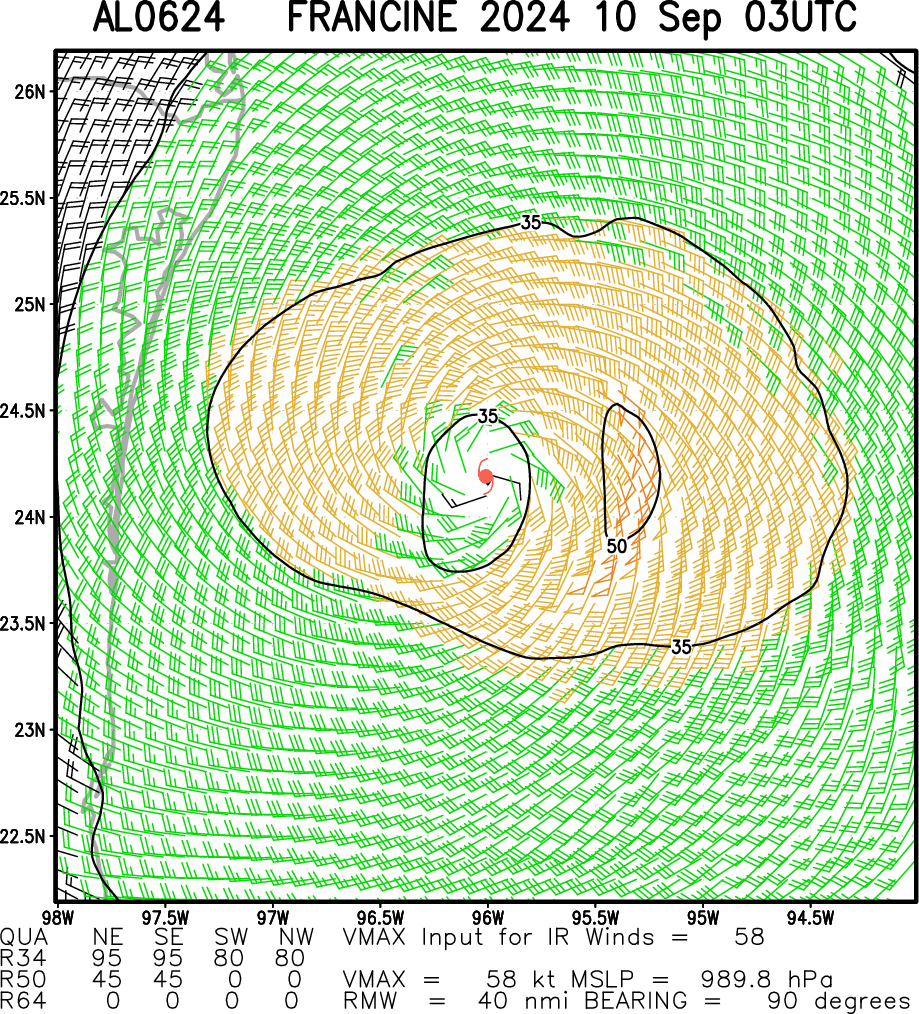

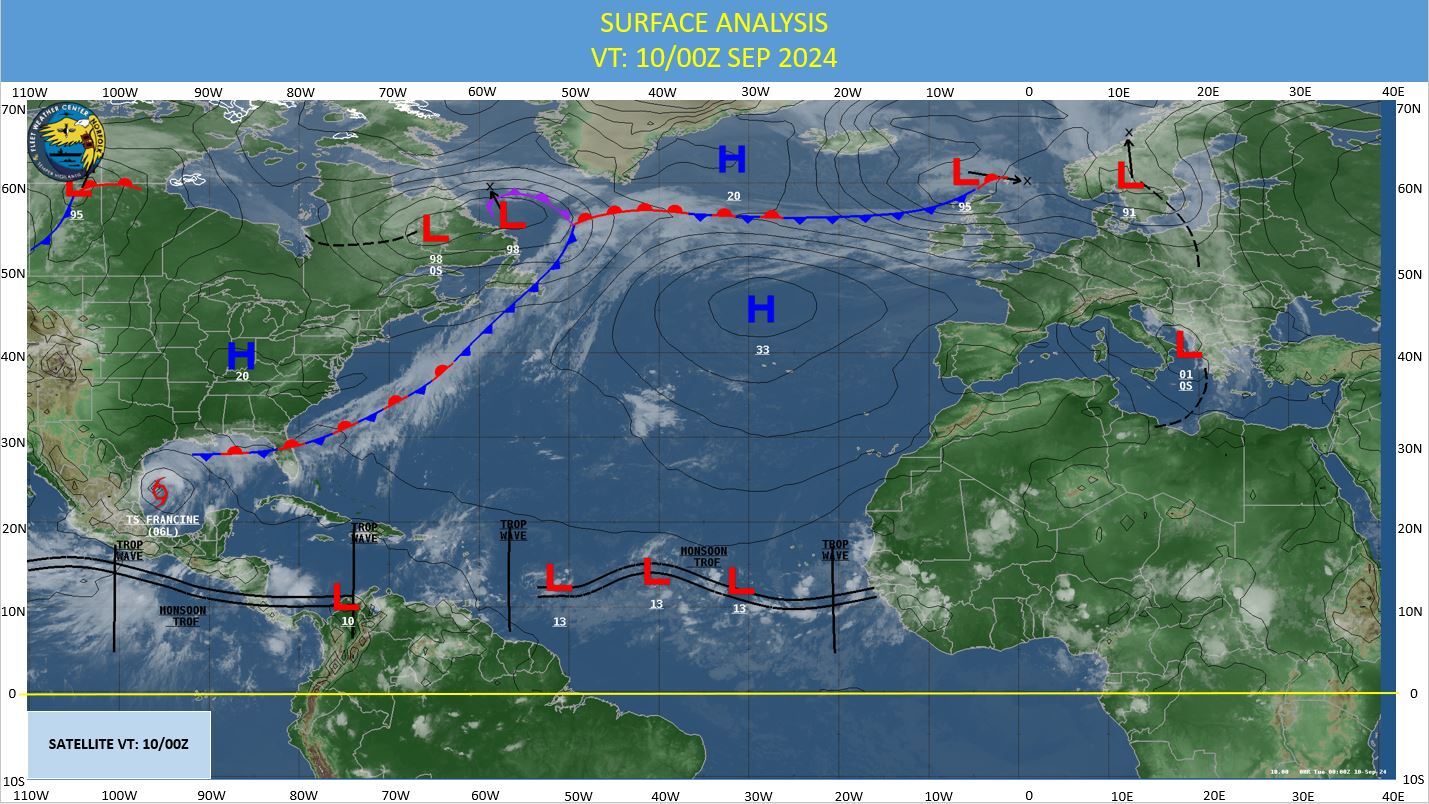

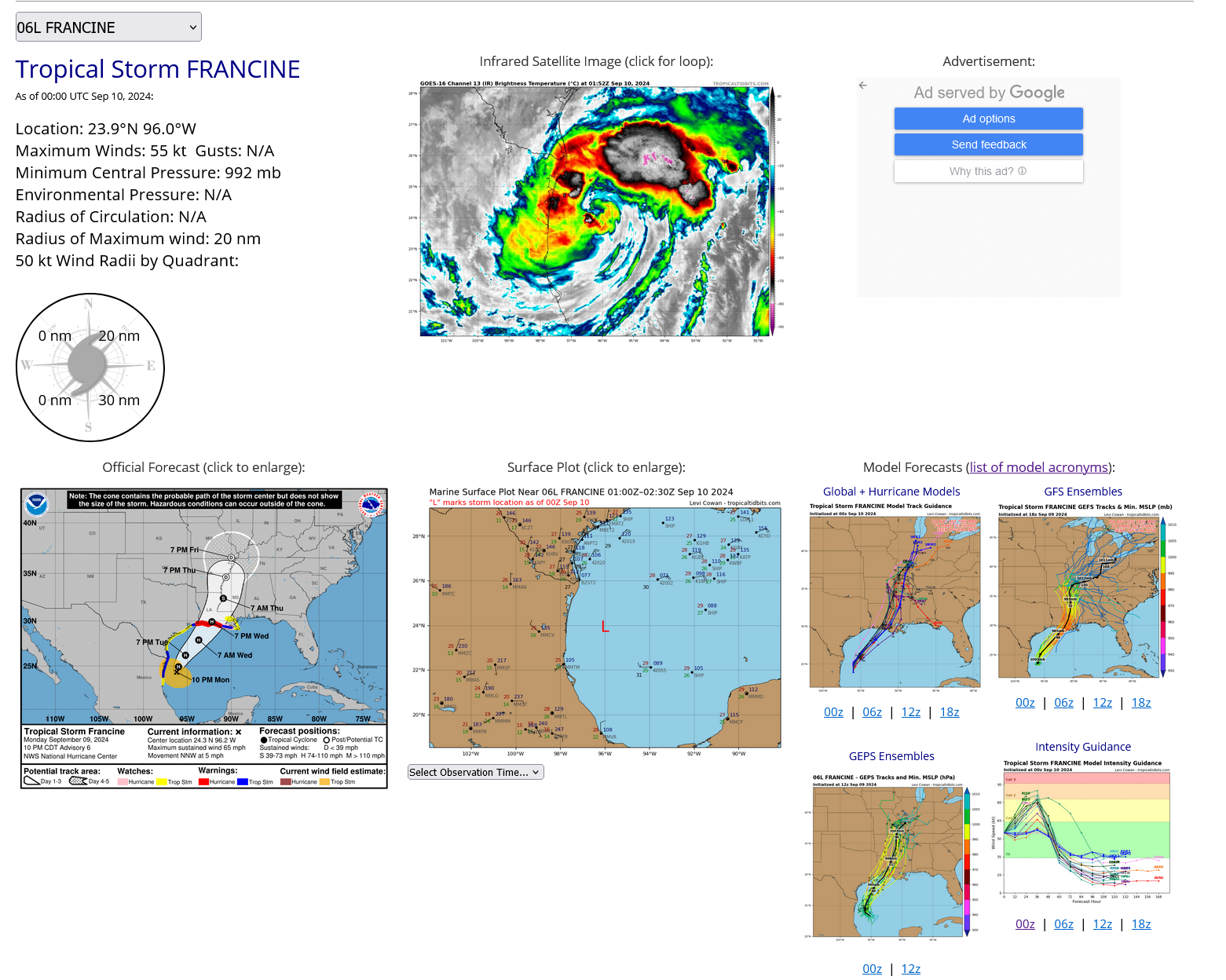

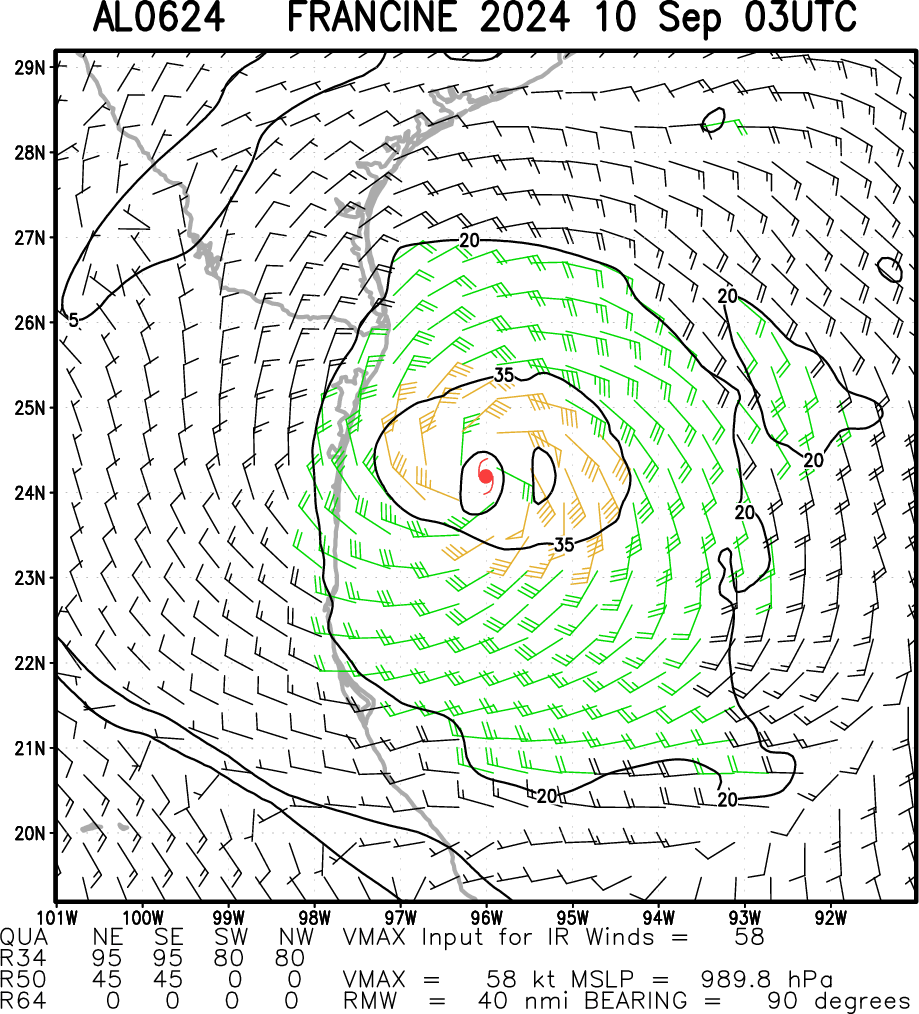

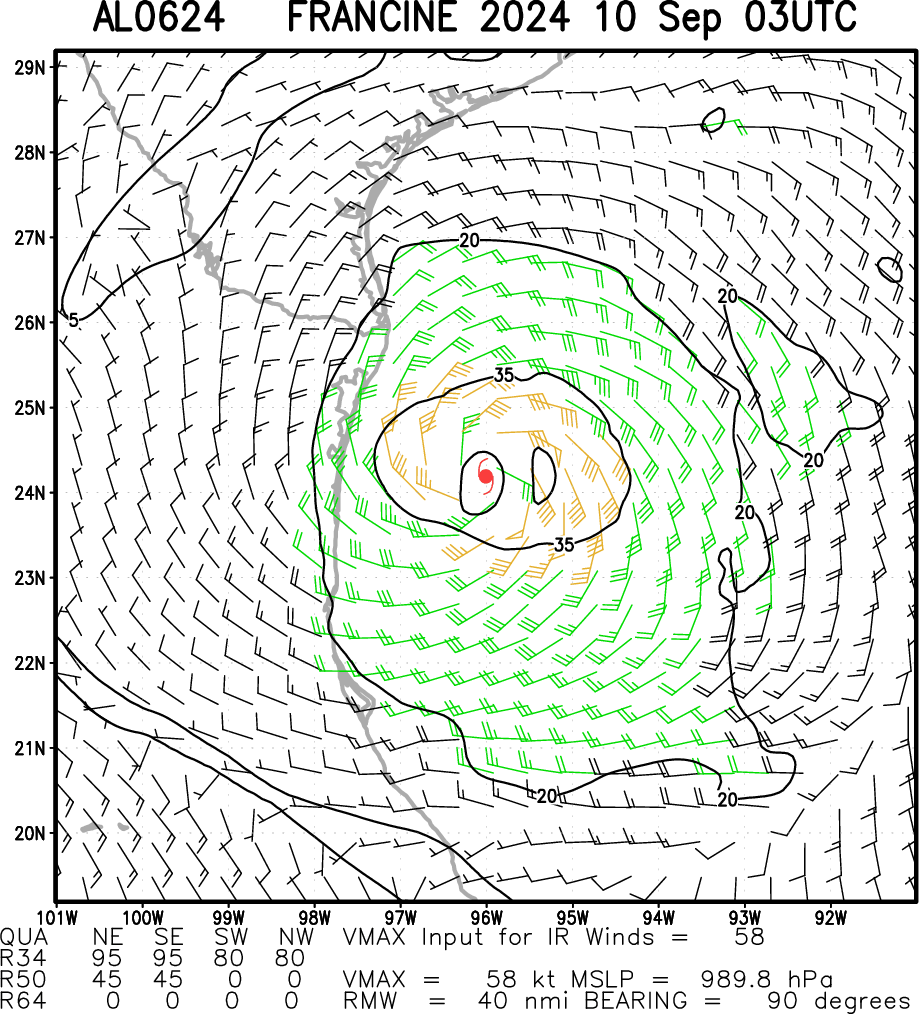

NORTH ATLANTIC/GULF OF MEXICO: TS 06L(FRANCINE): 10/00UTC ESTIMATED LOCATION AND INTENSITY. INTENSITY IS 55 KNOTS : + 10 KNOTS OVER 24 HOURS
0624090612 188N 881W 15
0624090618 190N 890W 15
0624090700 191N 900W 15
0624090706 191N 913W 15
0624090712 188N 922W 20
0624090718 189N 924W 20
0624090800 191N 926W 20
0624090806 198N 933W 25
0624090812 205N 942W 35
0624090818 214N 945W 45
0624090900 218N 946W 45
0624090906 220N 947W 45
0624090912 227N 950W 45
0624090918 237N 958W 50
0624091000 239N 960W 55
0624090618 190N 890W 15
0624090700 191N 900W 15
0624090706 191N 913W 15
0624090712 188N 922W 20
0624090718 189N 924W 20
0624090800 191N 926W 20
0624090806 198N 933W 25
0624090812 205N 942W 35
0624090818 214N 945W 45
0624090900 218N 946W 45
0624090906 220N 947W 45
0624090912 227N 950W 45
0624090918 237N 958W 50
0624091000 239N 960W 55

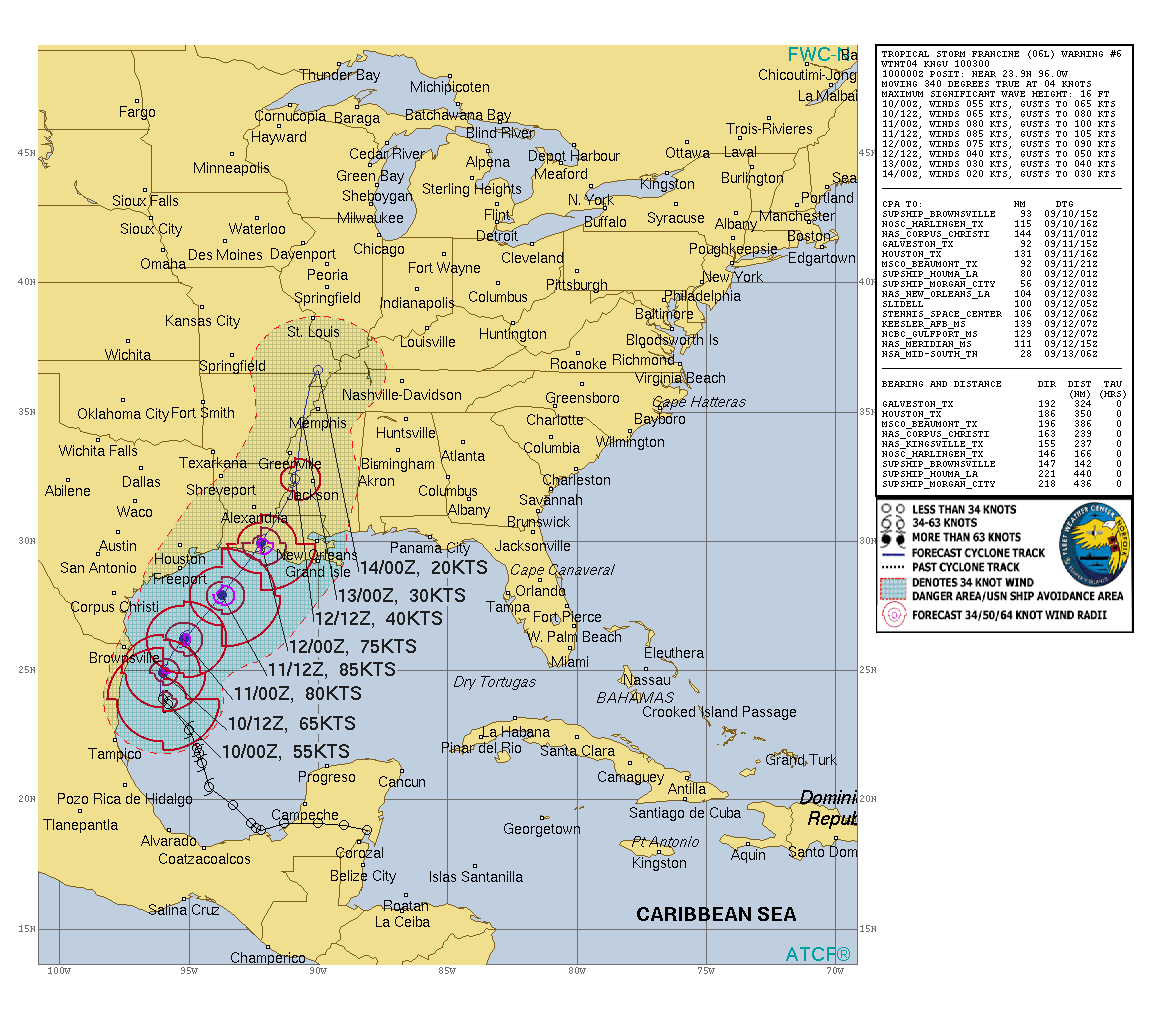

WARNING 6 ISSUED AT 10/03UTC

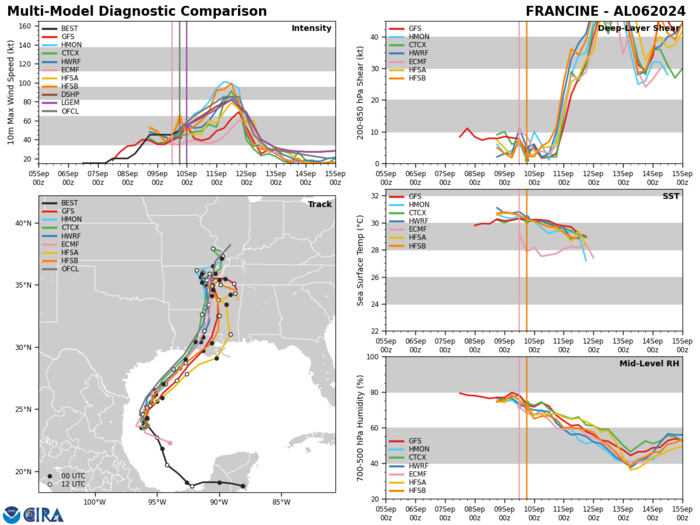

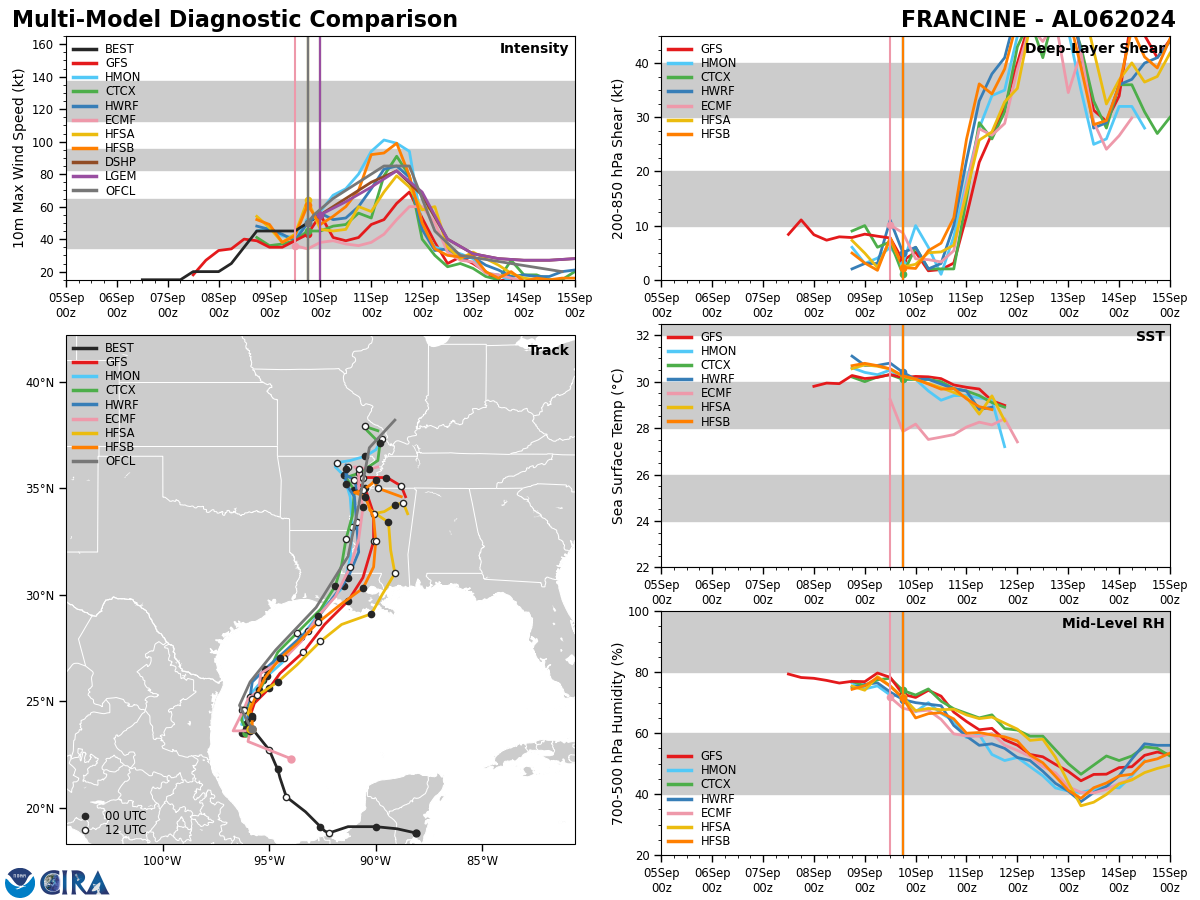

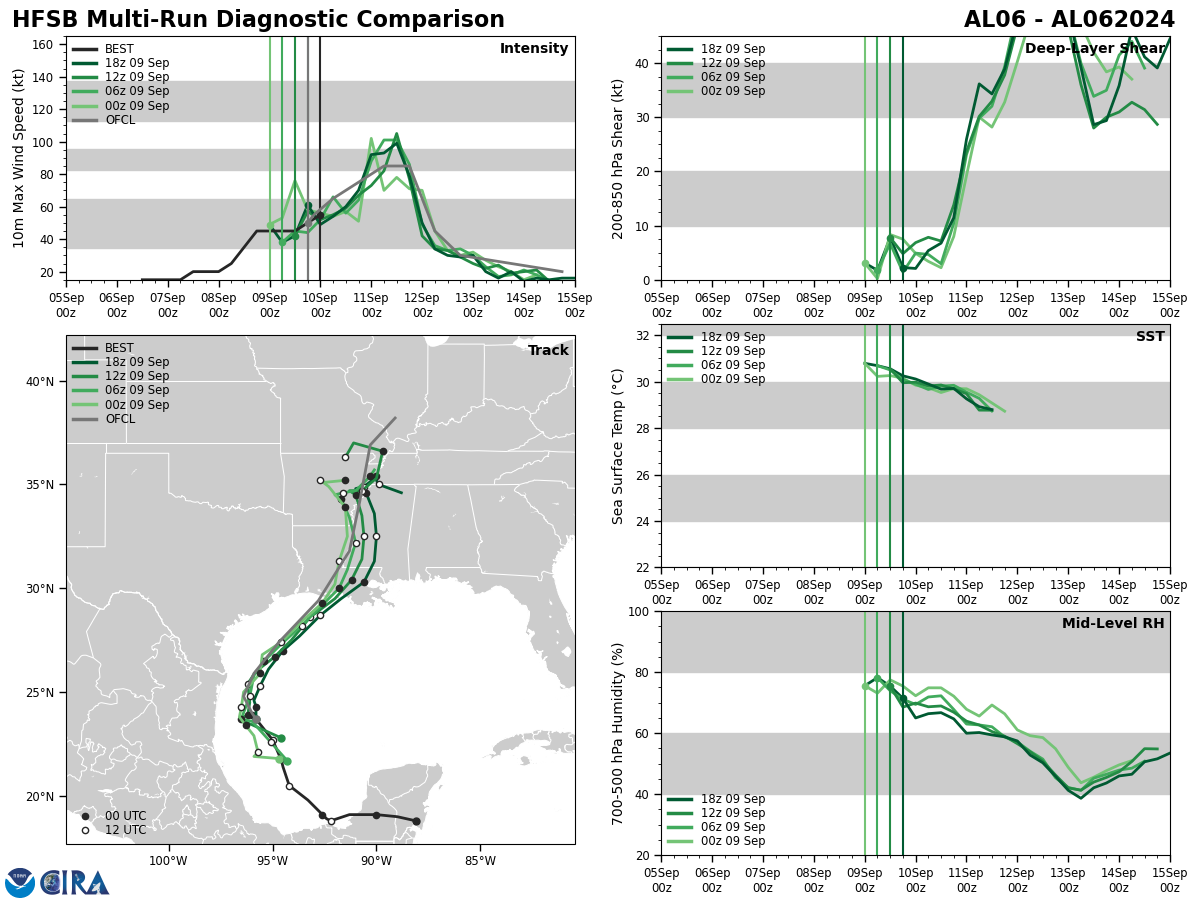

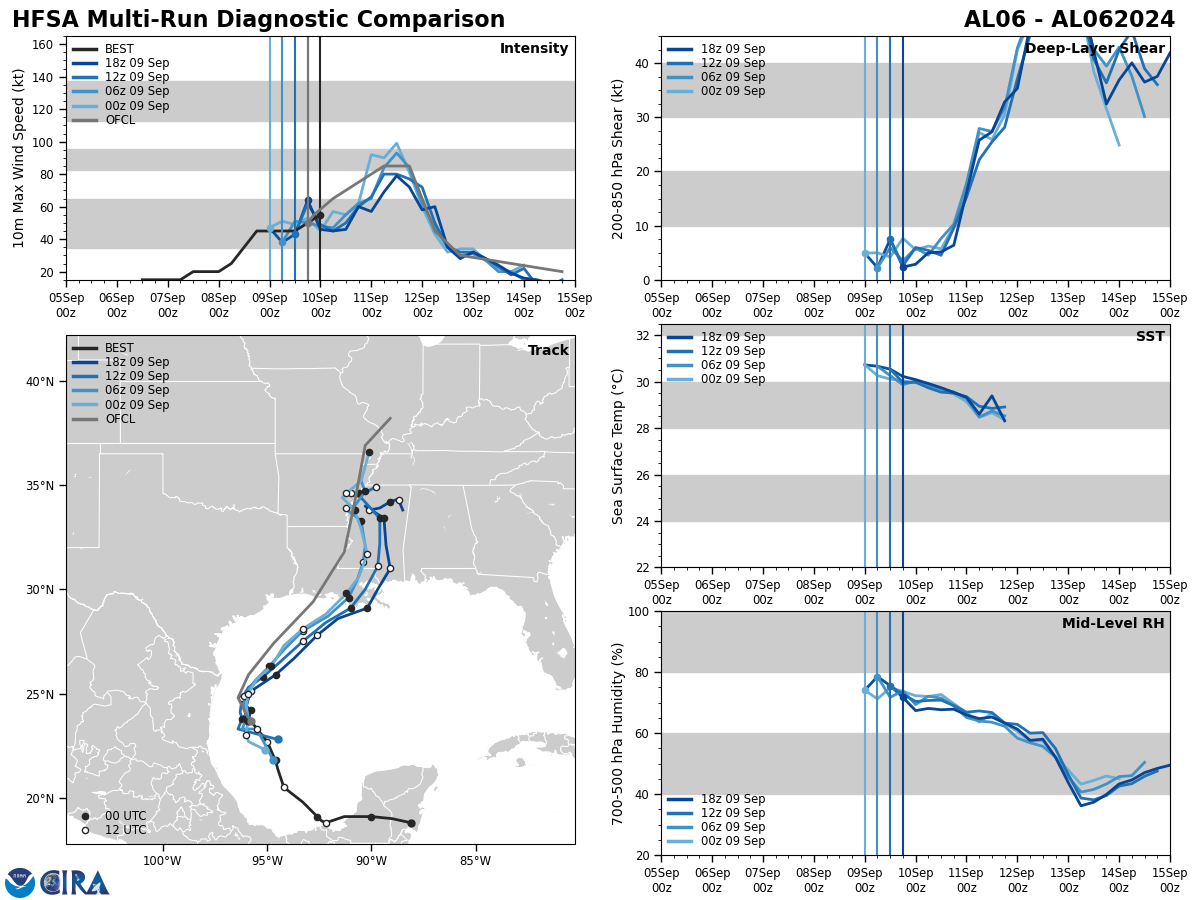

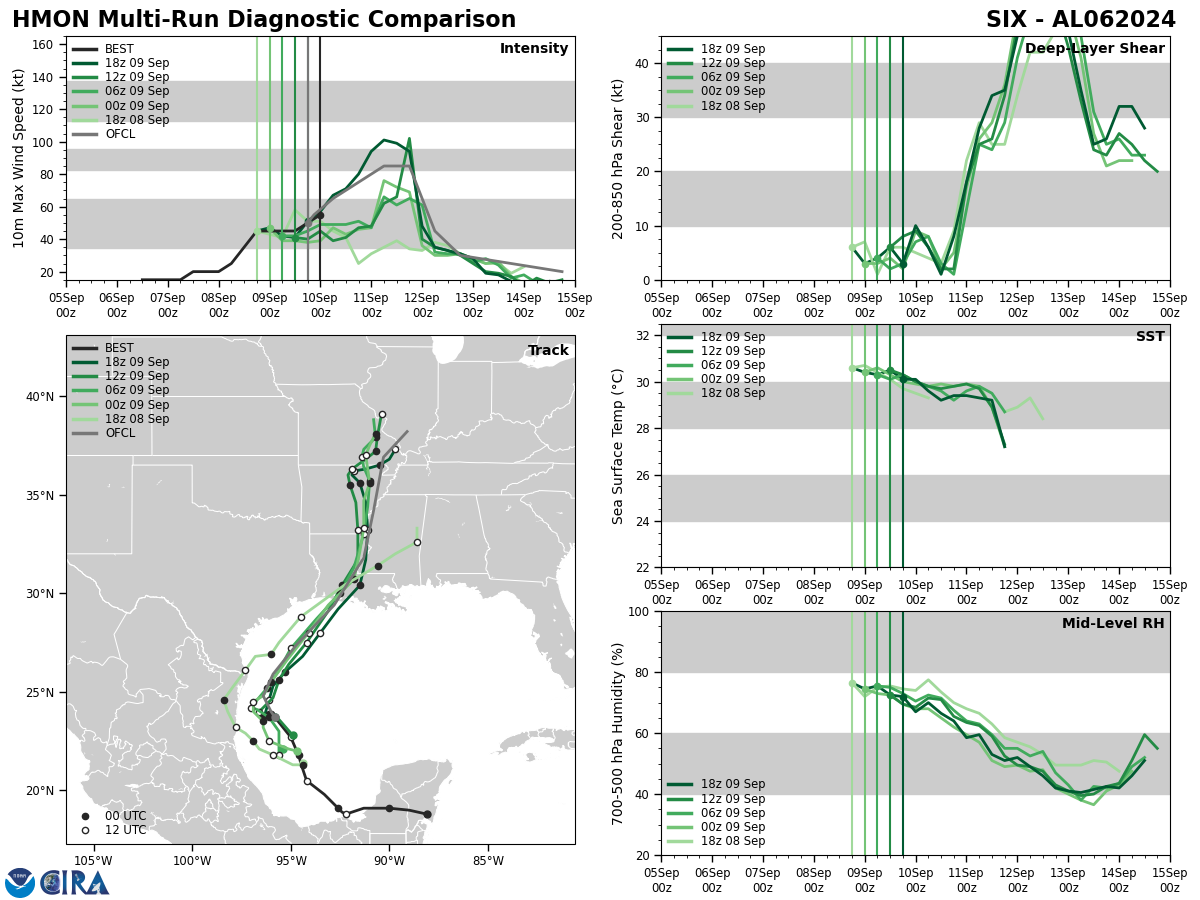

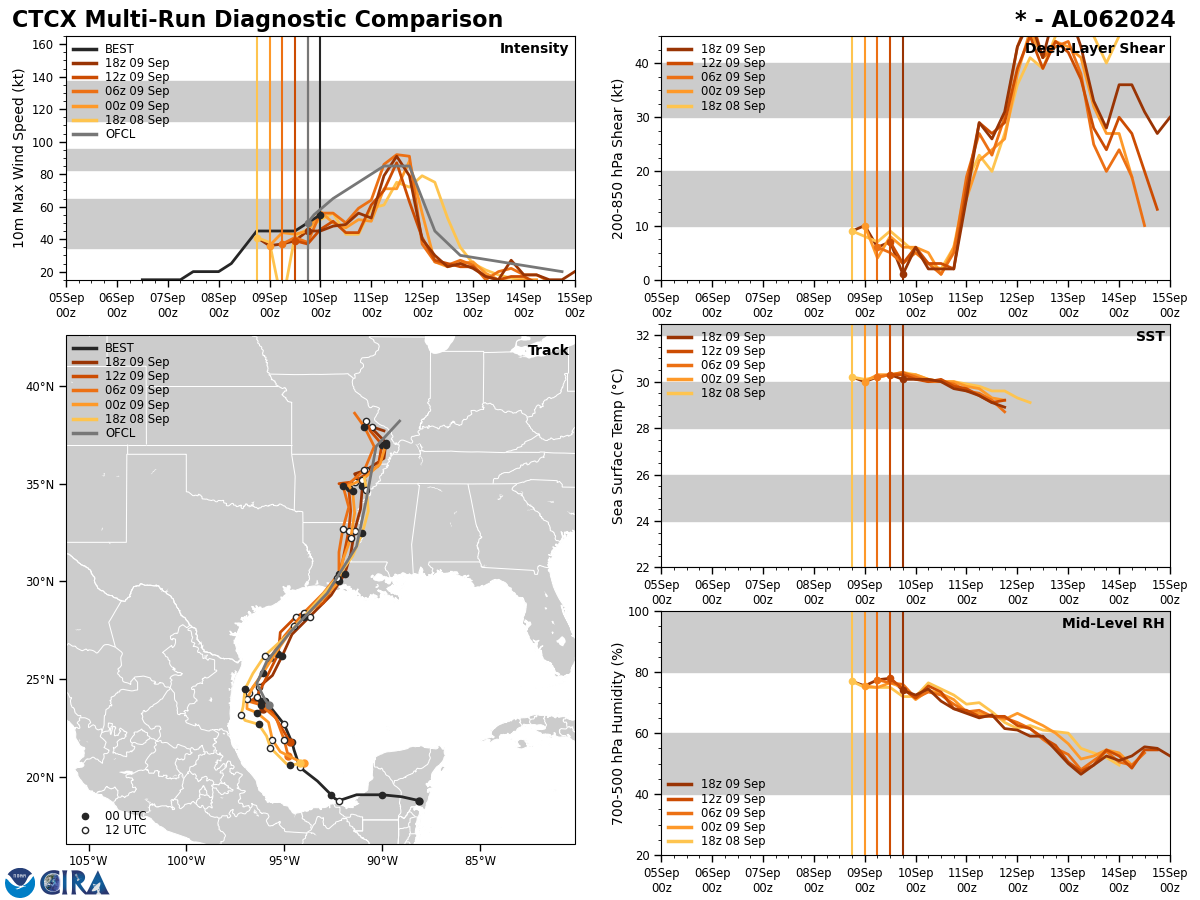

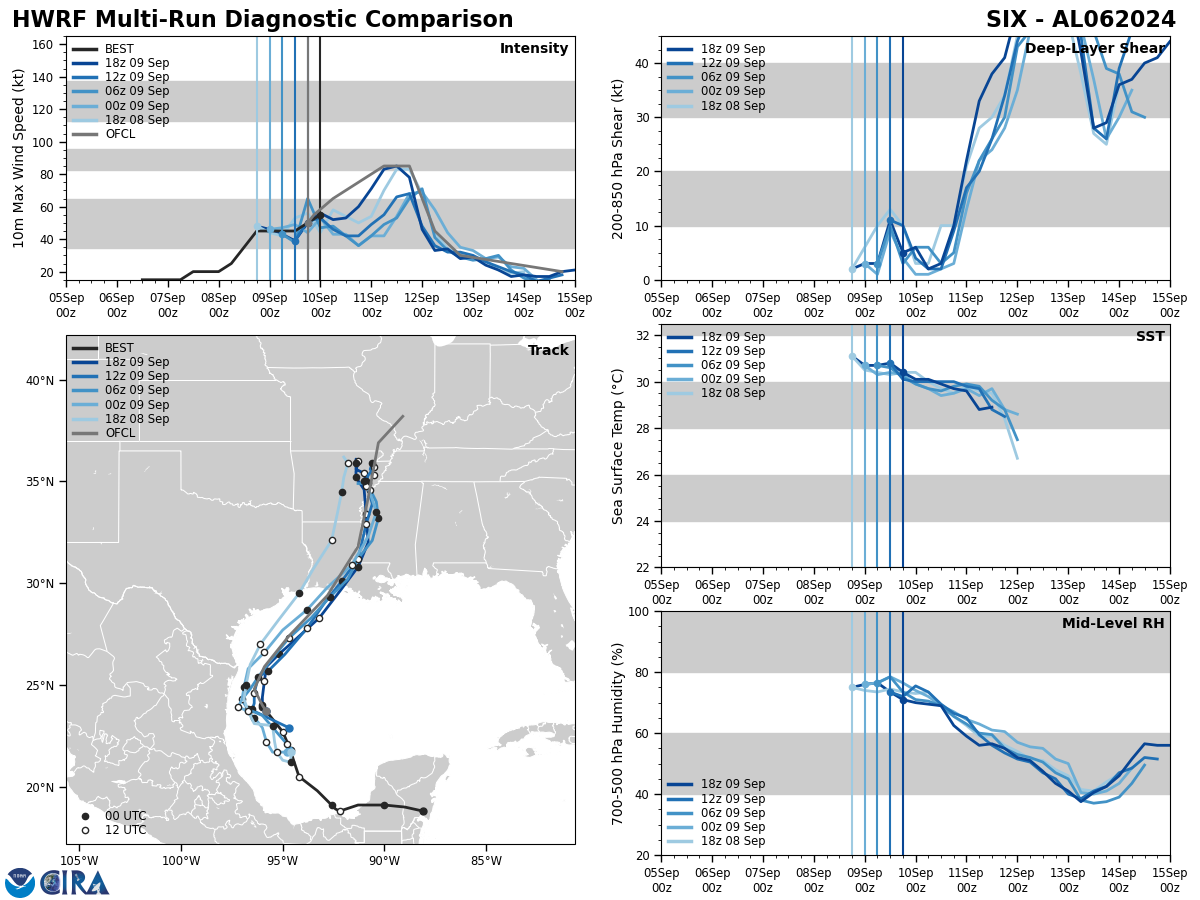

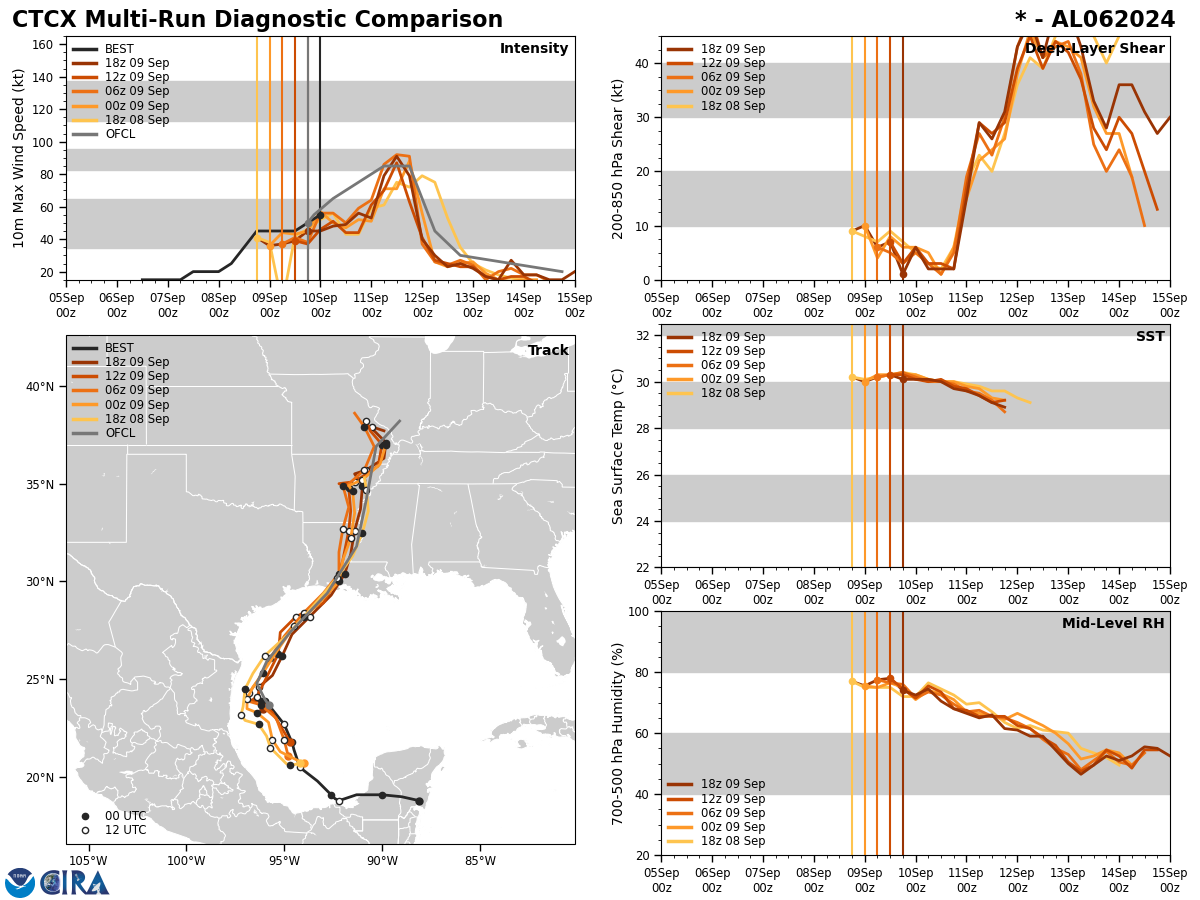

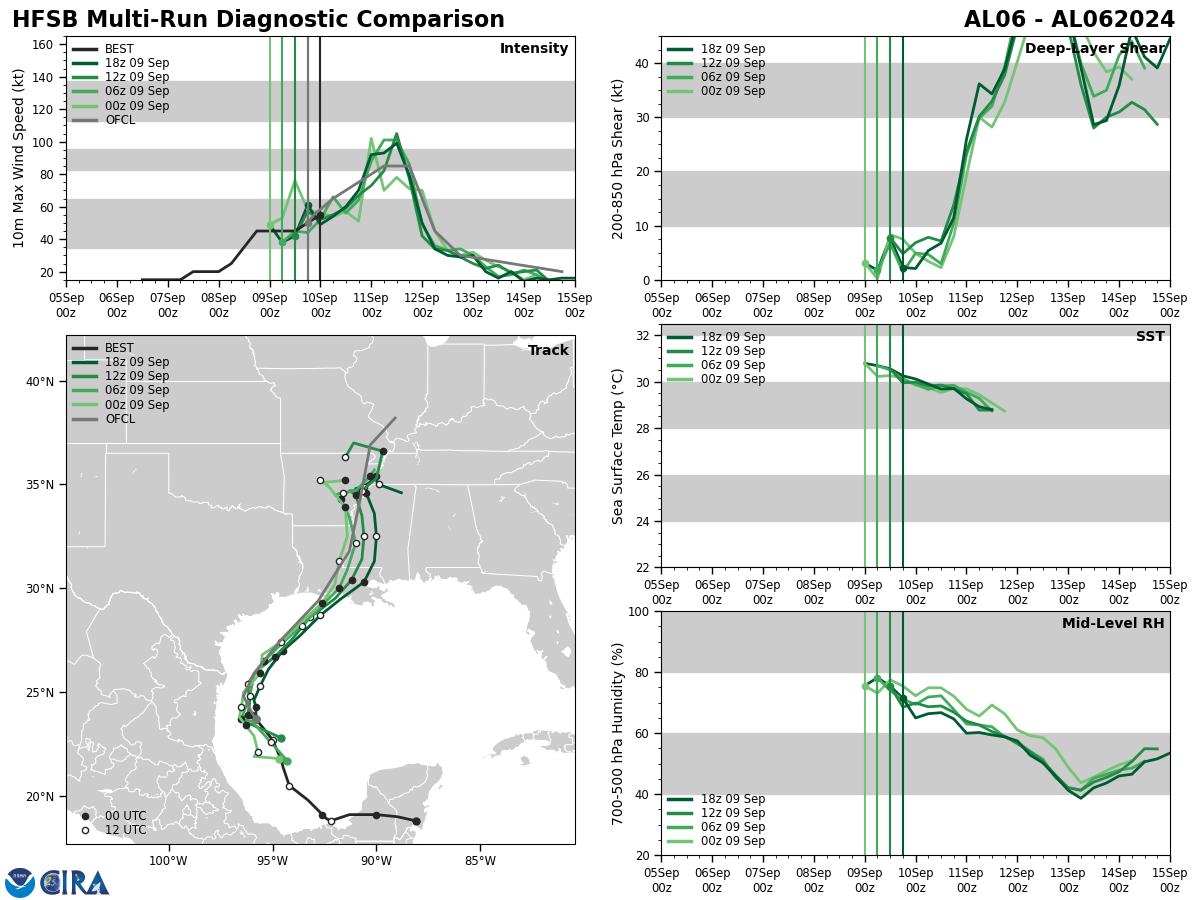

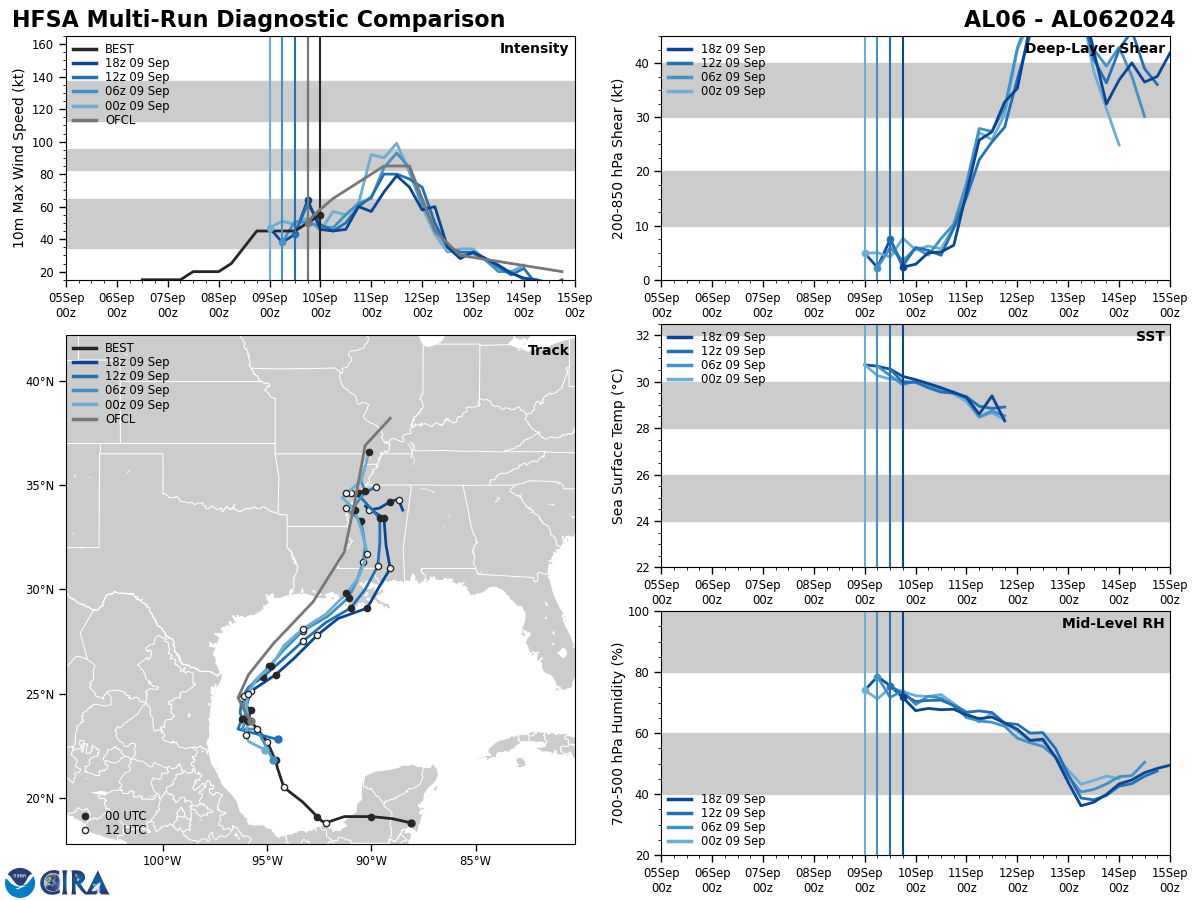

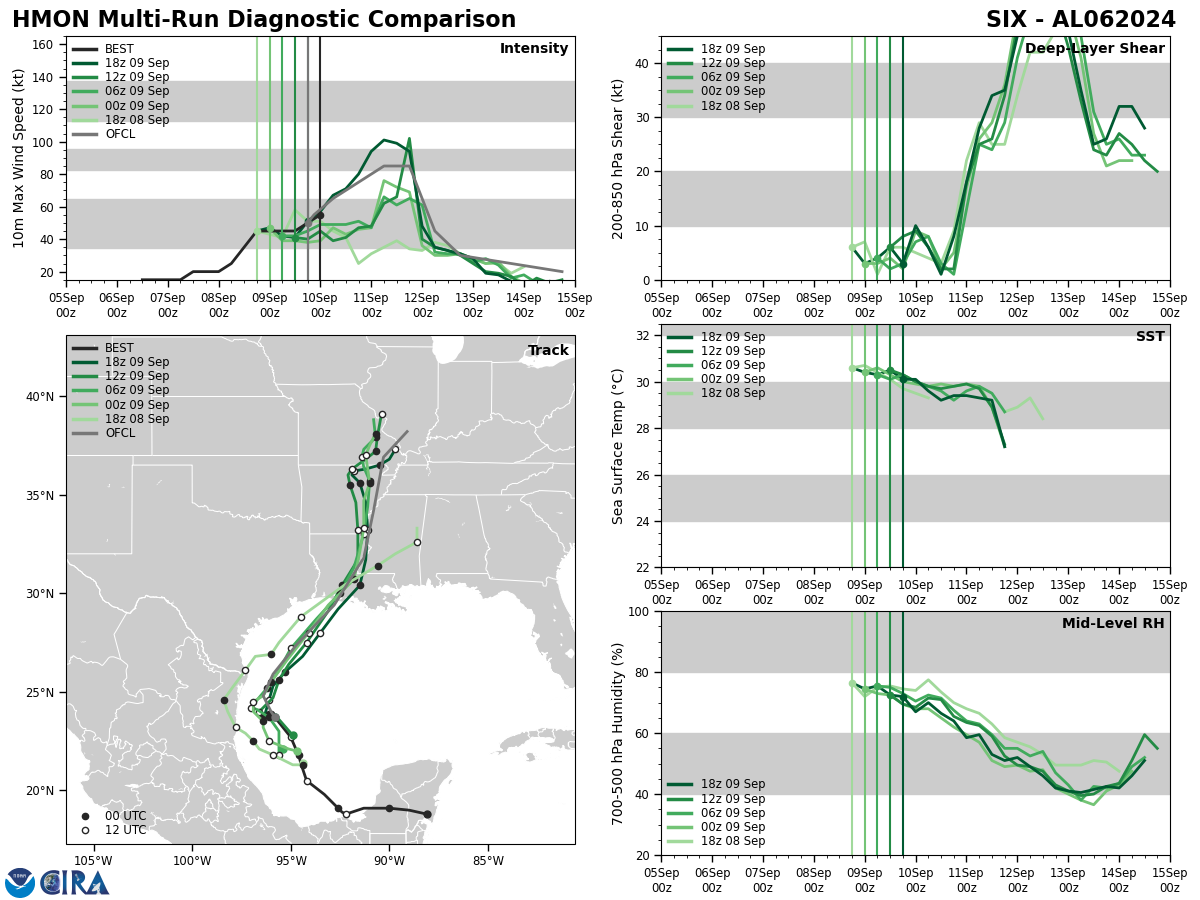

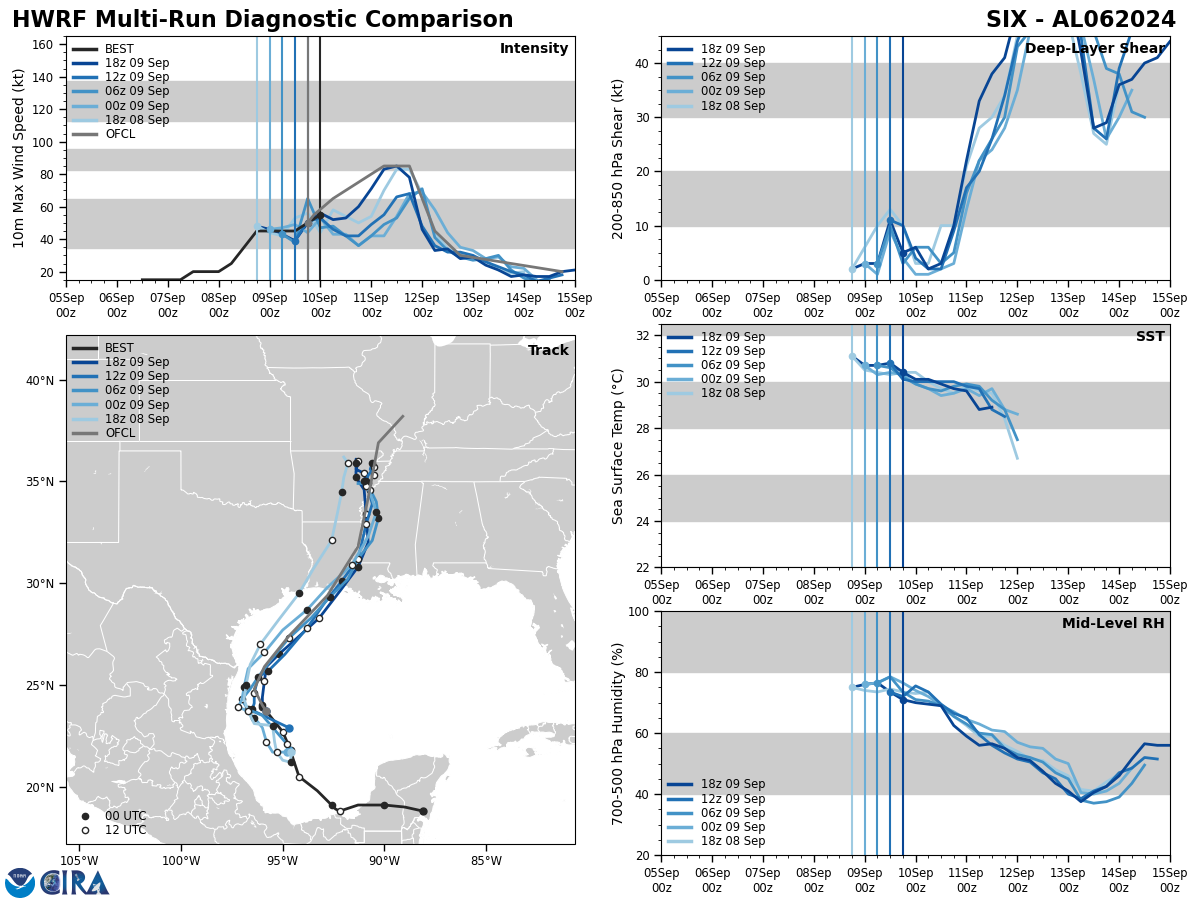

Model Diagnostic Plot
(253.16 KB)
