Invest 97W//Invest 96S and Invest 90S//Invest 99P and Invest 98P// 10 day ECMWF storm tracks// 1406utc, 1930utc update

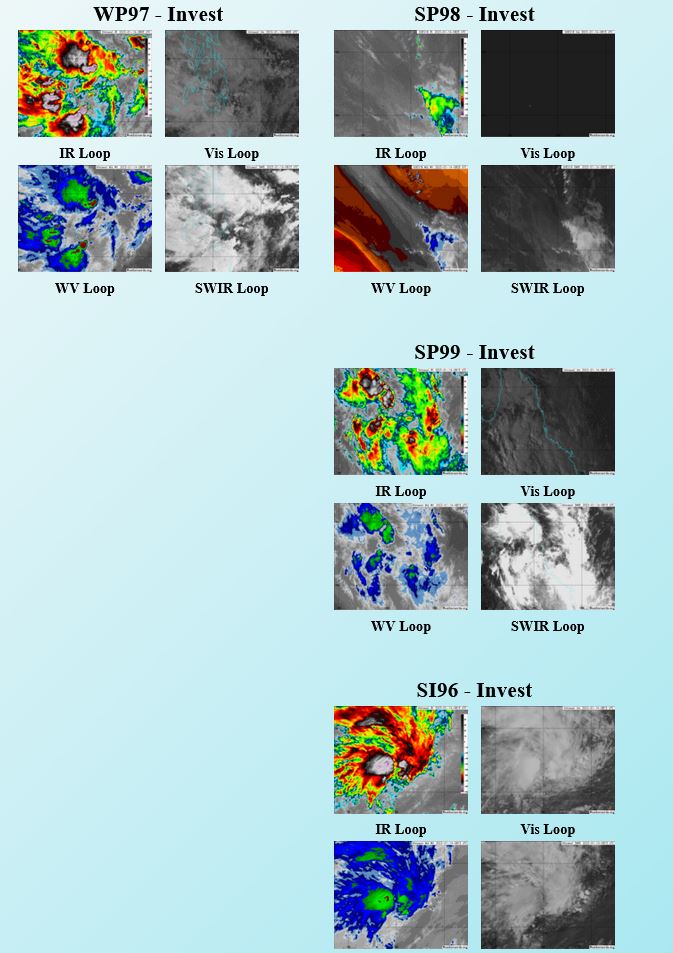

CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

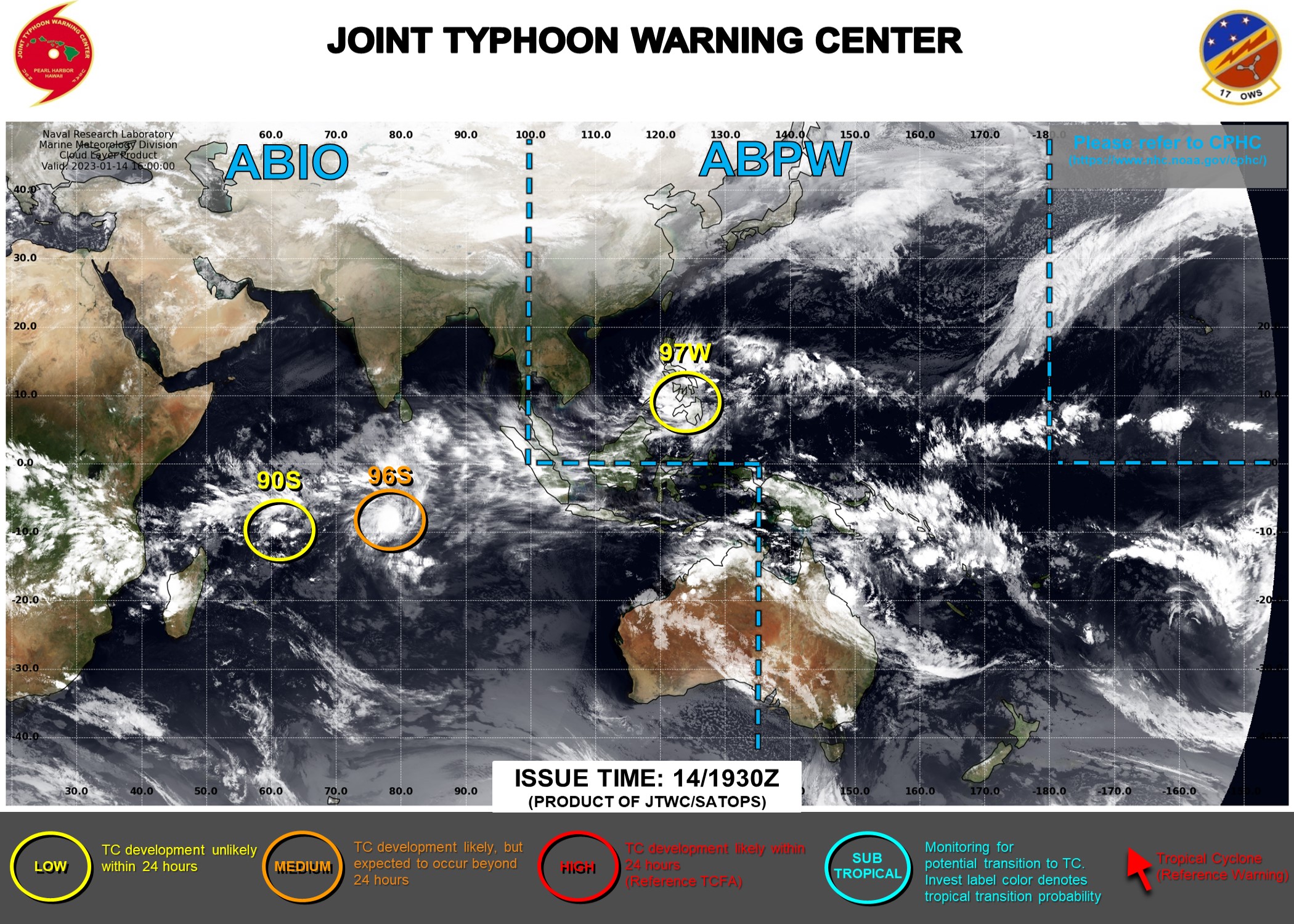

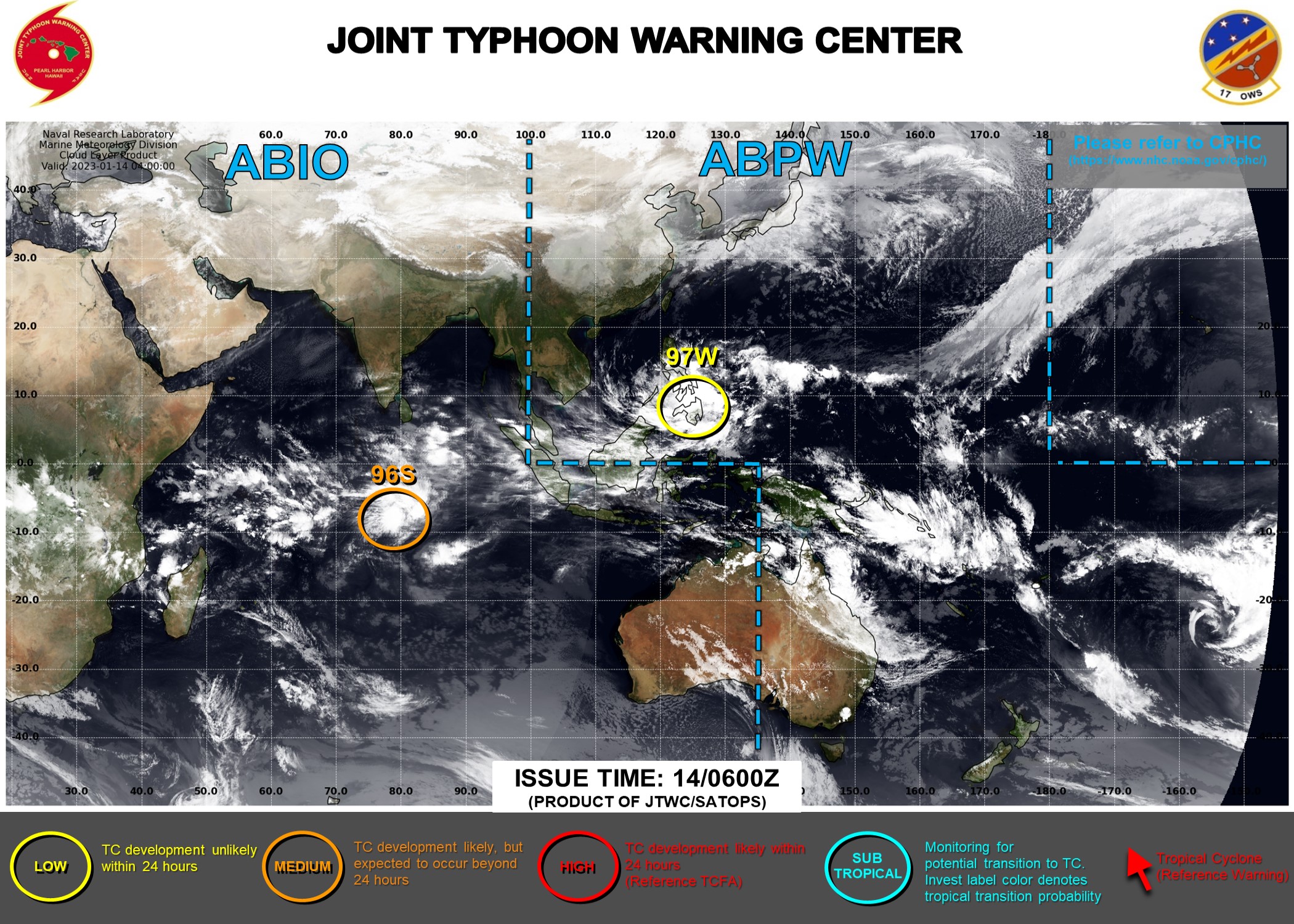

JTWC IS ISSUING 3HOURLY SATELLITE BULLETINS ON INVEST 97W AND INVEST 96S.
JTWC IS ISSUING 3HOURLY SATELLITE BULLETINS ON INVEST 97W AND INVEST 96S.
JTWC PH
 Joint Typhoon Warning Center
JTWC BIS
20230114_0600_abpwsair.jpg 20230114.0600.abpwsair.jpg  (876.29 KB)


Invest 97W//Invest 96S and Invest 90S//Invest 99P and Invest 98P// 10 day ECMWF storm tracks// 1406utc, 1930utc update

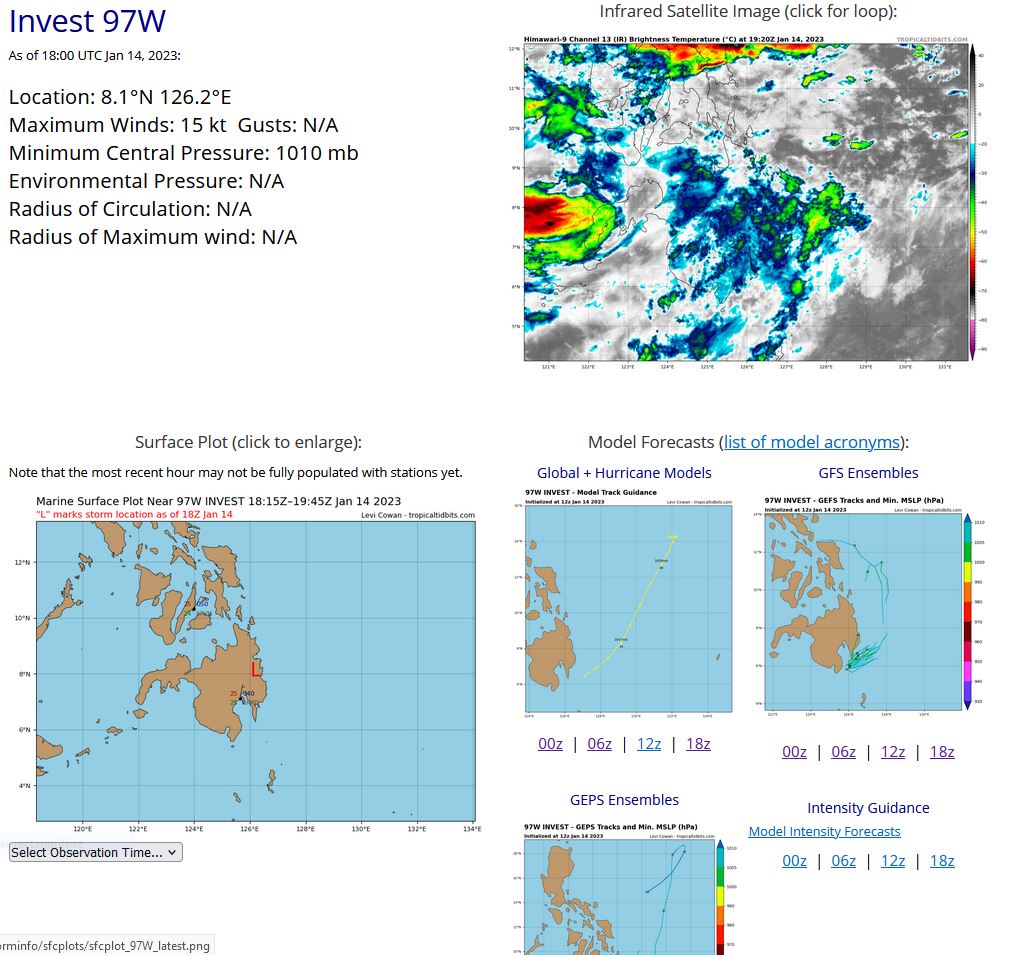

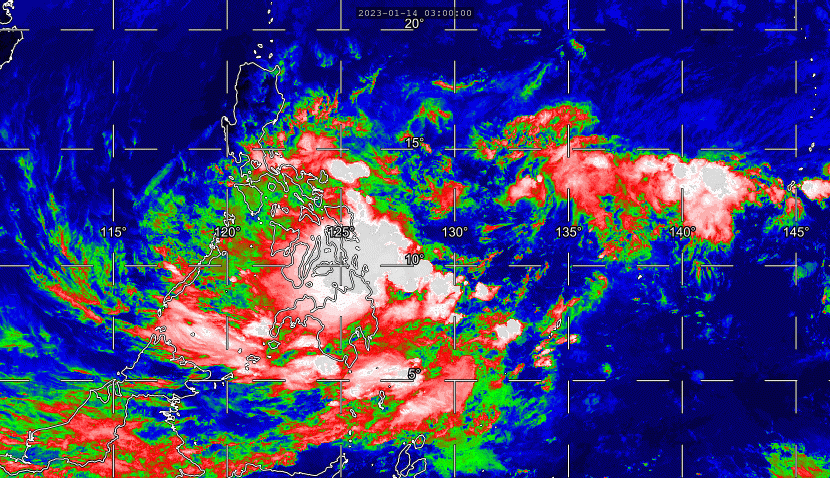

WESTERN NORTH PACIFIC OCEAN: INVEST 97W. ESTIMATED LOCATION AND INTENSITY AT 14/18UTC.ADVISORY(ABPW) ISSUED AT 14/06UTC.

THE AREA OF CONVECTION (INVEST 97W) PREVIOUSLY LOCATED NEAR 9.7N 125.1E IS NOW LOCATED NEAR 8.0N 127.1E, APPROXIMATELY 101 NM EAST- NORTHEAST OF DAVAO, PHILIPPINES. AN ENHANCED INFRARED SATELLITE IMAGE AND NUMEROUS SURFACE OBSERVATIONS DEPICT A LOOSELY ORGANIZED, BROAD MONSOON DEPRESSION LIKE SYSTEM WITH 15-20 KNOT WINDS AND CENTRALLY LOCATED CONVECTION ALOFT. ENVIRONMENTAL ANALYSIS REVEALS MARGINALLY FAVORABLE CONDITIONS FOR DEVELOPMENT WITH ROBUST OUTFLOW AND STRONG DIVERGENCE ALOFT, LOW TO MODERATE (15-20 KTS) VWS, AND WARM 28-29C SST. GLOBAL MODELS GENERALLY AGREE ON THE SLOW DEVELOPMENT OF A MONSOON DEPRESSION THAT REMAINS QUASI-STATIONARY OVER THE NEXT 24-48 HOURS. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS LOW.
THE AREA OF CONVECTION (INVEST 97W) PREVIOUSLY LOCATED NEAR 9.7N 125.1E IS NOW LOCATED NEAR 8.0N 127.1E, APPROXIMATELY 101 NM EAST- NORTHEAST OF DAVAO, PHILIPPINES. AN ENHANCED INFRARED SATELLITE IMAGE AND NUMEROUS SURFACE OBSERVATIONS DEPICT A LOOSELY ORGANIZED, BROAD MONSOON DEPRESSION LIKE SYSTEM WITH 15-20 KNOT WINDS AND CENTRALLY LOCATED CONVECTION ALOFT. ENVIRONMENTAL ANALYSIS REVEALS MARGINALLY FAVORABLE CONDITIONS FOR DEVELOPMENT WITH ROBUST OUTFLOW AND STRONG DIVERGENCE ALOFT, LOW TO MODERATE (15-20 KTS) VWS, AND WARM 28-29C SST. GLOBAL MODELS GENERALLY AGREE ON THE SLOW DEVELOPMENT OF A MONSOON DEPRESSION THAT REMAINS QUASI-STATIONARY OVER THE NEXT 24-48 HOURS. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS LOW.
2023-01-14 18:00 8.1     126.2     15
2023-01-14 12:00 8.1     126.7     15
2023-01-14 06:00 8.0     127.1     15
2023-01-14 00:00 7.7     127.6     15
2023-01-13 18:00 7.1     127.7     15
2023-01-13 12:00 9.0     124.6     15
2023-01-13 06:00 9.5     124.6     15
2023-01-13 00:00 9.7     125.1     15
2023-01-12 18:00 8.8     127.1     15
2023-01-12 12:00 7.9     127.9     15
2023-01-12 06:00 8.3     128.3     15
2023-01-12 00:00 9.6     128.7     15
2023-01-11 18:00 9.2     129.1     15
2023-01-11 12:00 9.5     129.0     15
2023-01-11 06:00 9.4     129.9     15
2023-01-11 00:00 9.5     130.7     15
2023-01-10 18:00 8.7     131.3     15
2023-01-10 12:00 7.7     132.0     15
2023-01-10 06:00 6.4     132.5     15
2023-01-10 00:00 4.7     131.9     15
2023-01-09 18:00 4.6     131.8     15
2023-01-09 12:00 4.2     131.6     15
2023-01-09 06:00 3.9     131.8     15
2023-01-09 00:00 3.5     131.7     15
2023-01-08 18:00 4.4     130.9     15
2023-01-08 12:00 4.3     131.9     15

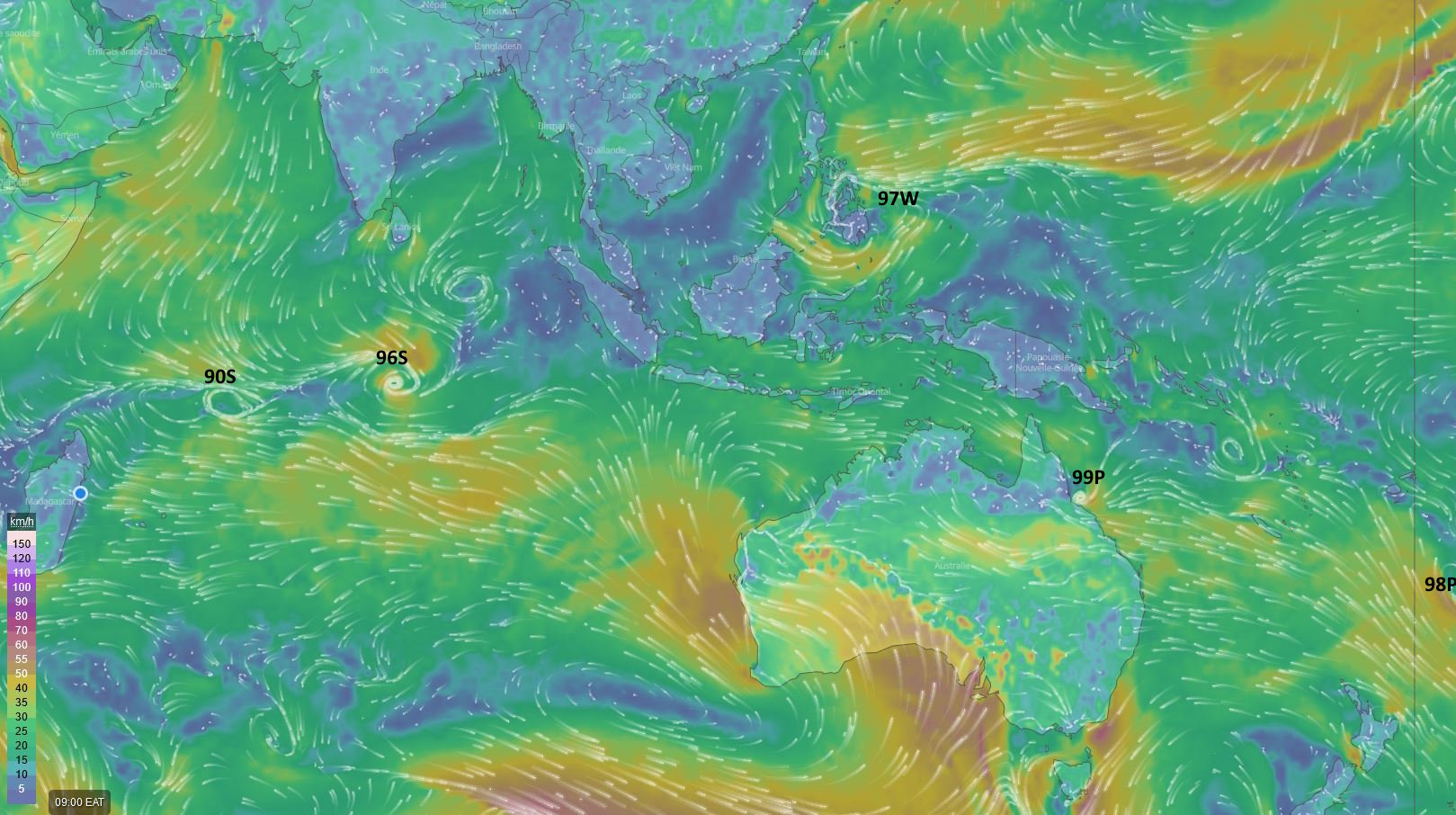

CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

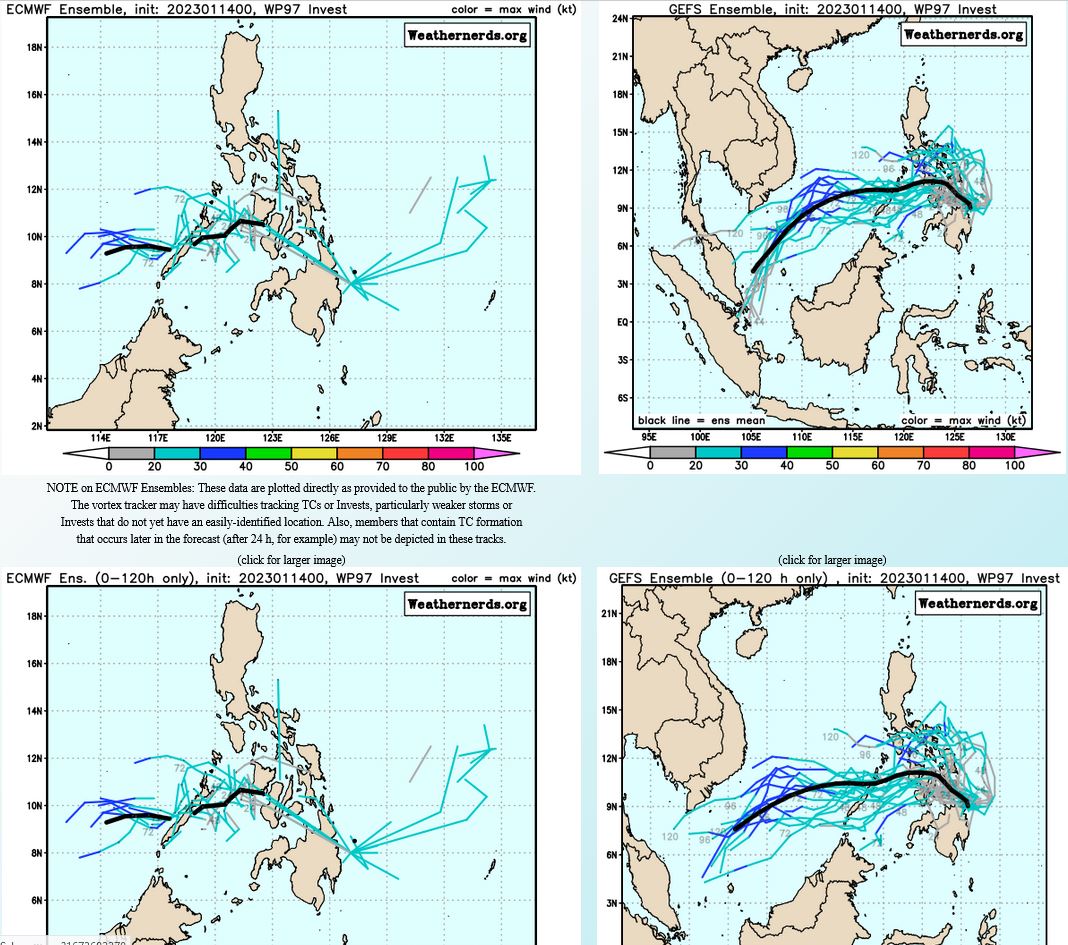

GLOBAL MODELS GENERALLY AGREE ON THE SLOW DEVELOPMENT OF A MONSOON DEPRESSION THAT REMAINS QUASI-STATIONARY OVER THE NEXT 24-48 HOURS.
GLOBAL MODELS GENERALLY AGREE ON THE SLOW DEVELOPMENT OF A MONSOON DEPRESSION THAT REMAINS QUASI-STATIONARY OVER THE NEXT 24-48 HOURS.

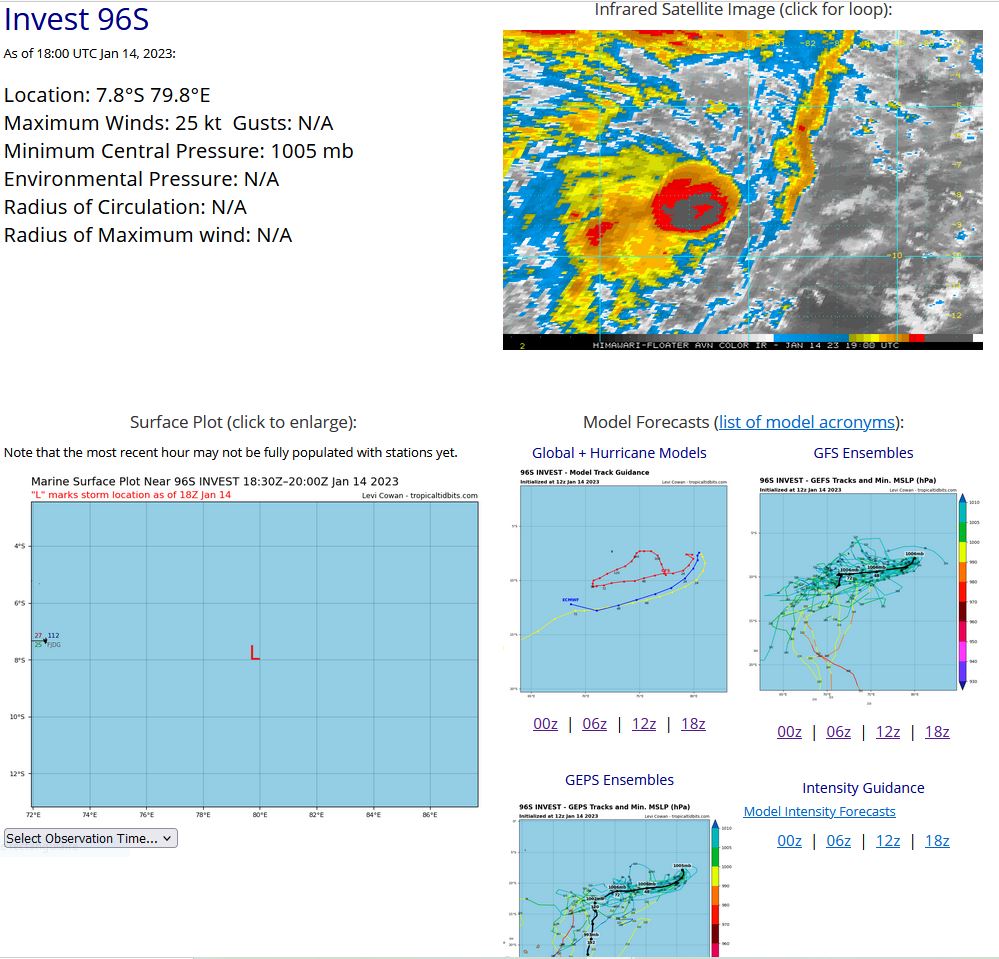

SOUTH INDIAN OCEAN: INVEST 96S. ESTIMATED LOCATION AND INTENSITY AT 14/18UTC. ADVISORY(ABIO) ISSUED AT 14/1930UTC.

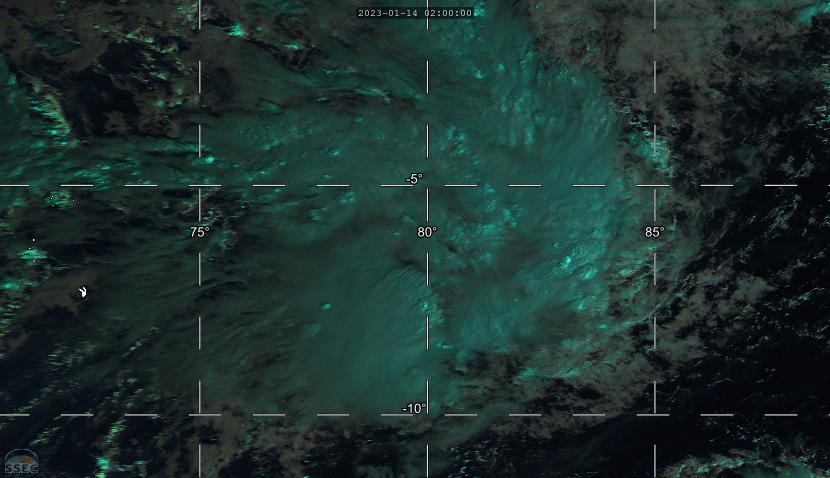

THE AREA OF CONVECTION (INVEST 96S) PREVIOUSLY LOCATED NEAR 7.6S 80.5E IS NOW LOCATED NEAR 7.8S 79.8E, APPROXIMATELY 438 NM EAST OF DIEGO GARCIA. ENHANCED INFRARED SATELLITE IMAGERY DEPICTS A LOW- LEVEL CIRCULATION CENTER (LLCC) WITH DEEP FLARING CONVECTION SHEARED TO THE WEST. A 141508Z AMSU-B 89GHZ IMAGE REVEALS WEAK CONVECTIVE BANDING WRAPPING INTO A LOOSELY DEFINED LLCC WITH THE BULK OF THE CONVECTION OFFSET TO THE WEST. RECENT SCATTEROMETRY DATA REVEALS A WELL-DEFINED CIRCULATION WITH A LARGE SWATH OF 20 KNOTS WINDS IN THE NORTHERN AND SOUTHERN QUADRANT AND A SWATH OF 25 KNOT WINDS JUST TO THE WEST OF THE LLCC. INVEST 96S IS CURRENTLY UNDER AN AREA OF MODERATE TO HIGH (20-25KT) VWS, HOWEVER STRONG EQUATORWARD OUTFLOW ALOFT AND WARM (28-29C) SST REMAIN CONDUCIVE FOR DEVELOPMENT. GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 96S WILL REMAIN QUASI-STATIONARY OVER THE NEXT 24-36 HOURS BEFORE TAKING ON A WESTWARD TRACK. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 25 TO 30 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1004 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS MEDIUM.
THE AREA OF CONVECTION (INVEST 96S) PREVIOUSLY LOCATED NEAR 7.6S 80.5E IS NOW LOCATED NEAR 7.8S 79.8E, APPROXIMATELY 438 NM EAST OF DIEGO GARCIA. ENHANCED INFRARED SATELLITE IMAGERY DEPICTS A LOW- LEVEL CIRCULATION CENTER (LLCC) WITH DEEP FLARING CONVECTION SHEARED TO THE WEST. A 141508Z AMSU-B 89GHZ IMAGE REVEALS WEAK CONVECTIVE BANDING WRAPPING INTO A LOOSELY DEFINED LLCC WITH THE BULK OF THE CONVECTION OFFSET TO THE WEST. RECENT SCATTEROMETRY DATA REVEALS A WELL-DEFINED CIRCULATION WITH A LARGE SWATH OF 20 KNOTS WINDS IN THE NORTHERN AND SOUTHERN QUADRANT AND A SWATH OF 25 KNOT WINDS JUST TO THE WEST OF THE LLCC. INVEST 96S IS CURRENTLY UNDER AN AREA OF MODERATE TO HIGH (20-25KT) VWS, HOWEVER STRONG EQUATORWARD OUTFLOW ALOFT AND WARM (28-29C) SST REMAIN CONDUCIVE FOR DEVELOPMENT. GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 96S WILL REMAIN QUASI-STATIONARY OVER THE NEXT 24-36 HOURS BEFORE TAKING ON A WESTWARD TRACK. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 25 TO 30 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1004 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS REMAINS MEDIUM.
2023-01-14 18:00 7.8     79.8     25
2023-01-14 12:00 7.4     79.4     25


CLICK ON THE IMAGERY BELOW TO GET IT ANIMATED AND ENLARGED.

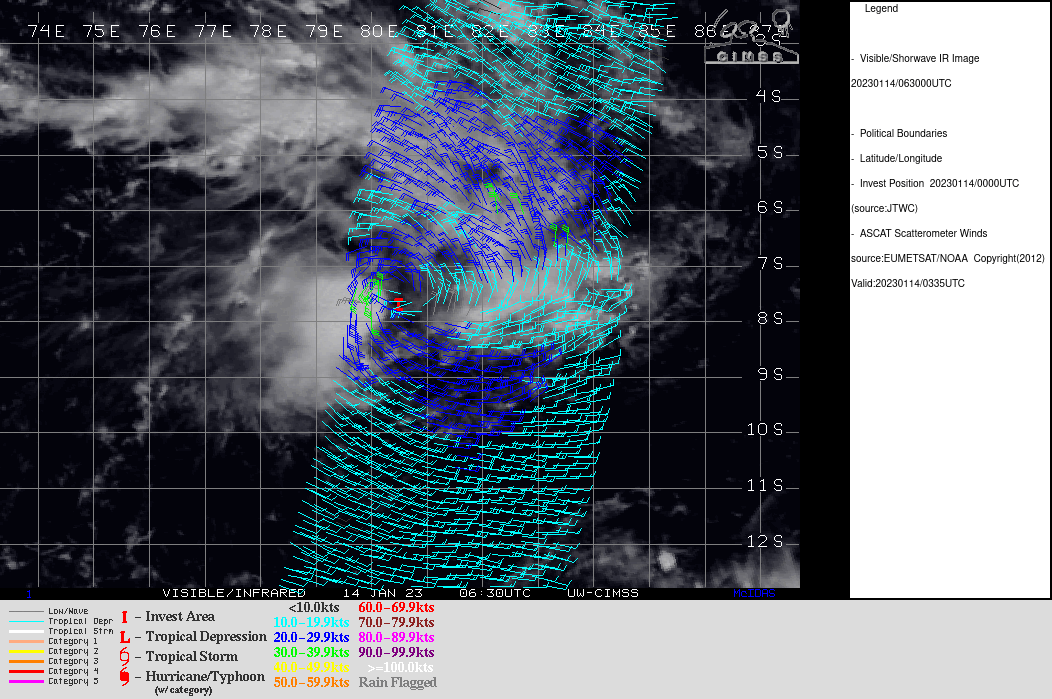

ASCAT DEPICTING A DEFINED CIRCULATION.

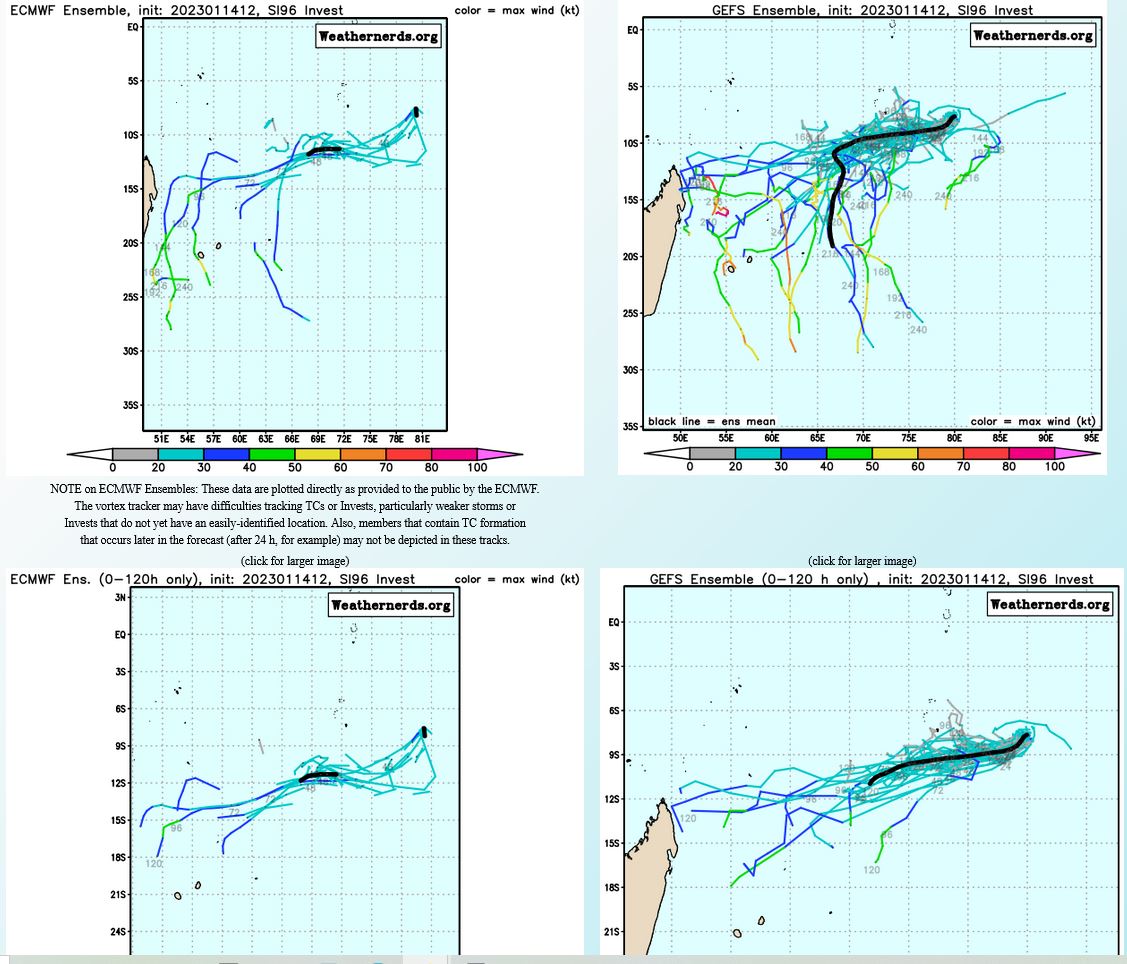

GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 96S WILL REMAIN QUASI-STATIONARY OVER THE NEXT 24-36 HOURS BEFORE TAKING ON A WESTWARD TRACK.
GLOBAL MODELS ARE IN AGREEMENT THAT INVEST 96S WILL REMAIN QUASI-STATIONARY OVER THE NEXT 24-36 HOURS BEFORE TAKING ON A WESTWARD TRACK.

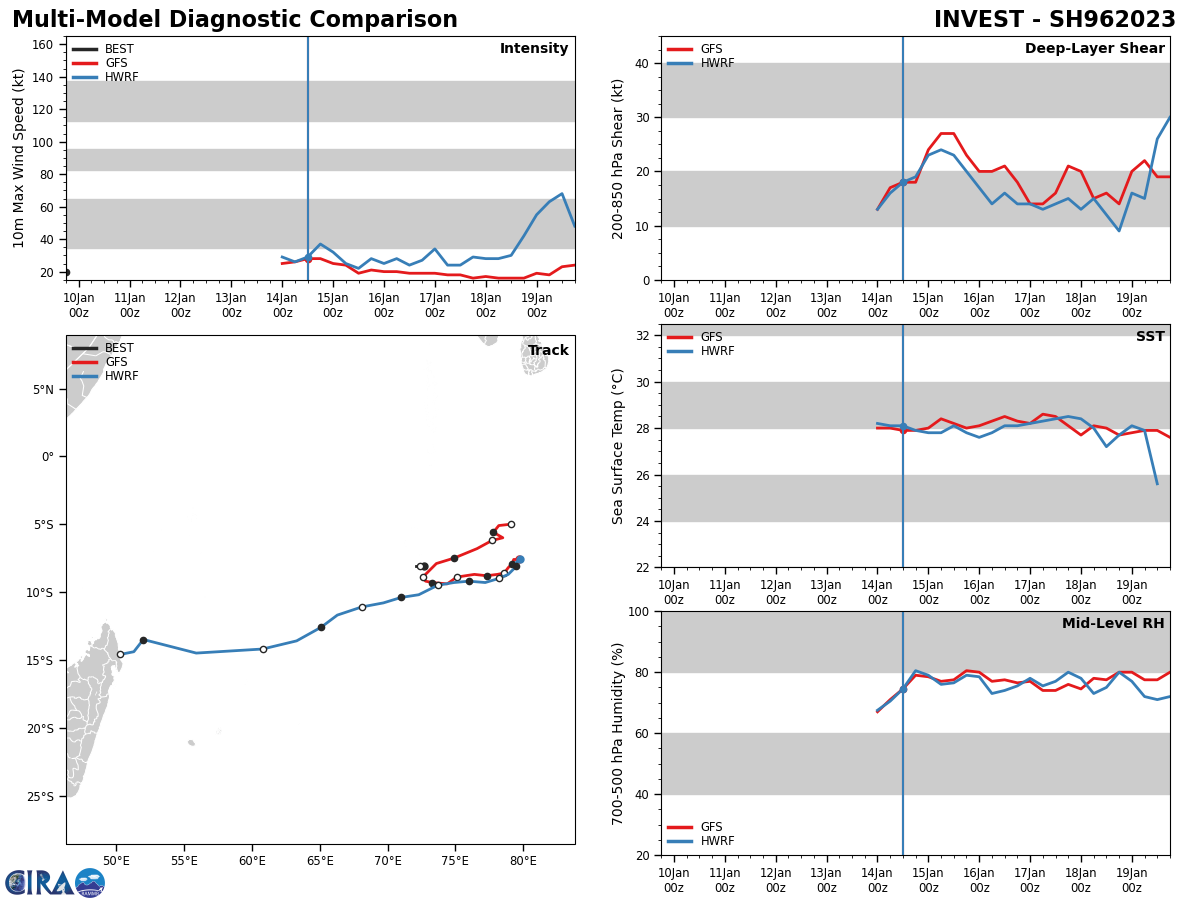

2023sh96_diagplot_202301141800.png 2023sh96_diagplot_202301141800.png  (135.83 KB)

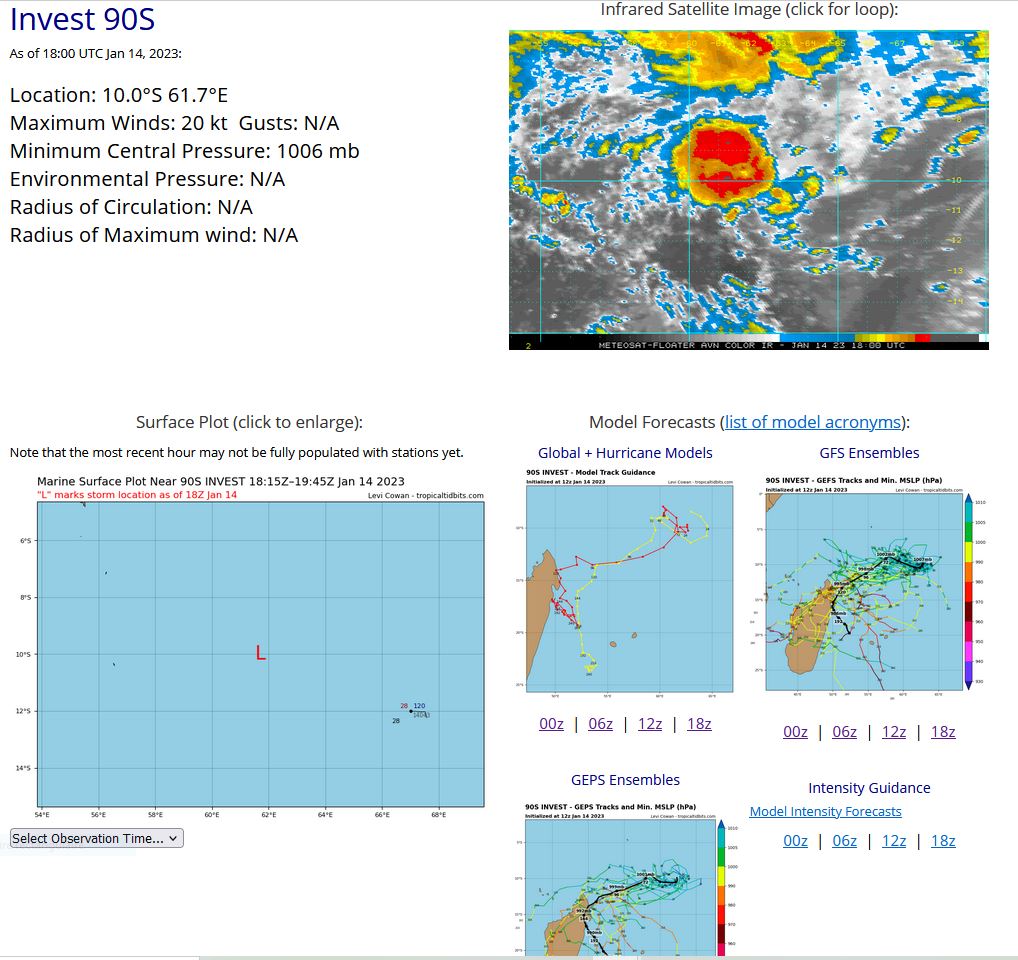

SOUTH INDIAN OCEAN: INVEST 90S. ESTIMATED LOCATION AND INTENSITY AT 14/18UTC. ADVISORY(ABIO) ISSUED AT 14/1930UTC.

AN AREA OF CONVECTION (INVEST 90S) HAS PERSISTED NEAR 10.0S 61.7E, APPROXIMATELY 662 NM NORTH-NORTHEAST OF MAURITIUS. ENHANCED INFRARED SATELLITE IMAGERY DEPICTS AN ELONGATED LOW-LEVEL CIRCULATION (LLC) PARTIALLY OBSCURED BY WEAK DISORGANIZED CONVECTION OVERHEAD. A 141700Z ASCAT-B PARTIAL PASS REVEALS A DEFINED BUT ELONGATED CIRCULATION WITH 15-20 KNOT WINDS IN THE EASTERN AND SOUTHERN PERIPHERIES OF THE LLC. 90S HAS LIMITED OUTFLOW ALOFT BUT LOW (10- 15KT) VWS AND WARM (28-29C) SST ARE CONDUCIVE. GLOBAL MODELS ARE IN GOOD AGREEMENT THAT INVEST 90S WILL BE SLOW TO DEVELOP AS IT MEANDERS WESTWARD OVER THE NEXT 24-48 HOURS. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS IS LOW.
AN AREA OF CONVECTION (INVEST 90S) HAS PERSISTED NEAR 10.0S 61.7E, APPROXIMATELY 662 NM NORTH-NORTHEAST OF MAURITIUS. ENHANCED INFRARED SATELLITE IMAGERY DEPICTS AN ELONGATED LOW-LEVEL CIRCULATION (LLC) PARTIALLY OBSCURED BY WEAK DISORGANIZED CONVECTION OVERHEAD. A 141700Z ASCAT-B PARTIAL PASS REVEALS A DEFINED BUT ELONGATED CIRCULATION WITH 15-20 KNOT WINDS IN THE EASTERN AND SOUTHERN PERIPHERIES OF THE LLC. 90S HAS LIMITED OUTFLOW ALOFT BUT LOW (10- 15KT) VWS AND WARM (28-29C) SST ARE CONDUCIVE. GLOBAL MODELS ARE IN GOOD AGREEMENT THAT INVEST 90S WILL BE SLOW TO DEVELOP AS IT MEANDERS WESTWARD OVER THE NEXT 24-48 HOURS. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 15 TO 20 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1006 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS IS LOW.
2023-01-14 18:00 10.0     61.7     20
2023-01-14 12:00 10.1     62.0     15
2023-01-14 06:00 10.1     62.7     15
2023-01-14 00:00  8.7      55.7     15
2023-01-13 18:00  8.5      56.2     15

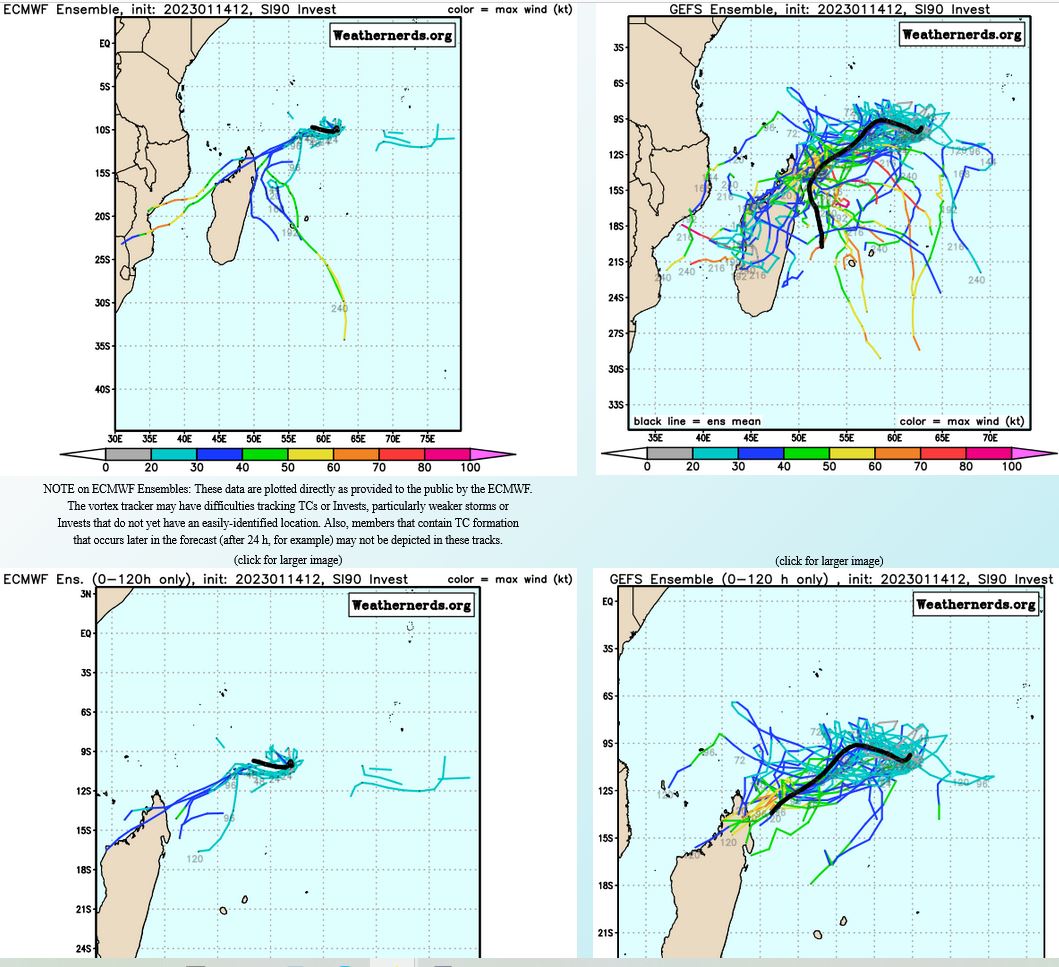

GLOBAL MODELS ARE IN GOOD AGREEMENT THAT INVEST 90S WILL BE SLOW TO DEVELOP AS IT MEANDERS WESTWARD OVER THE NEXT 24-48 HOURS.
GLOBAL MODELS ARE IN GOOD AGREEMENT THAT INVEST 90S WILL BE SLOW TO DEVELOP AS IT MEANDERS WESTWARD OVER THE NEXT 24-48 HOURS.

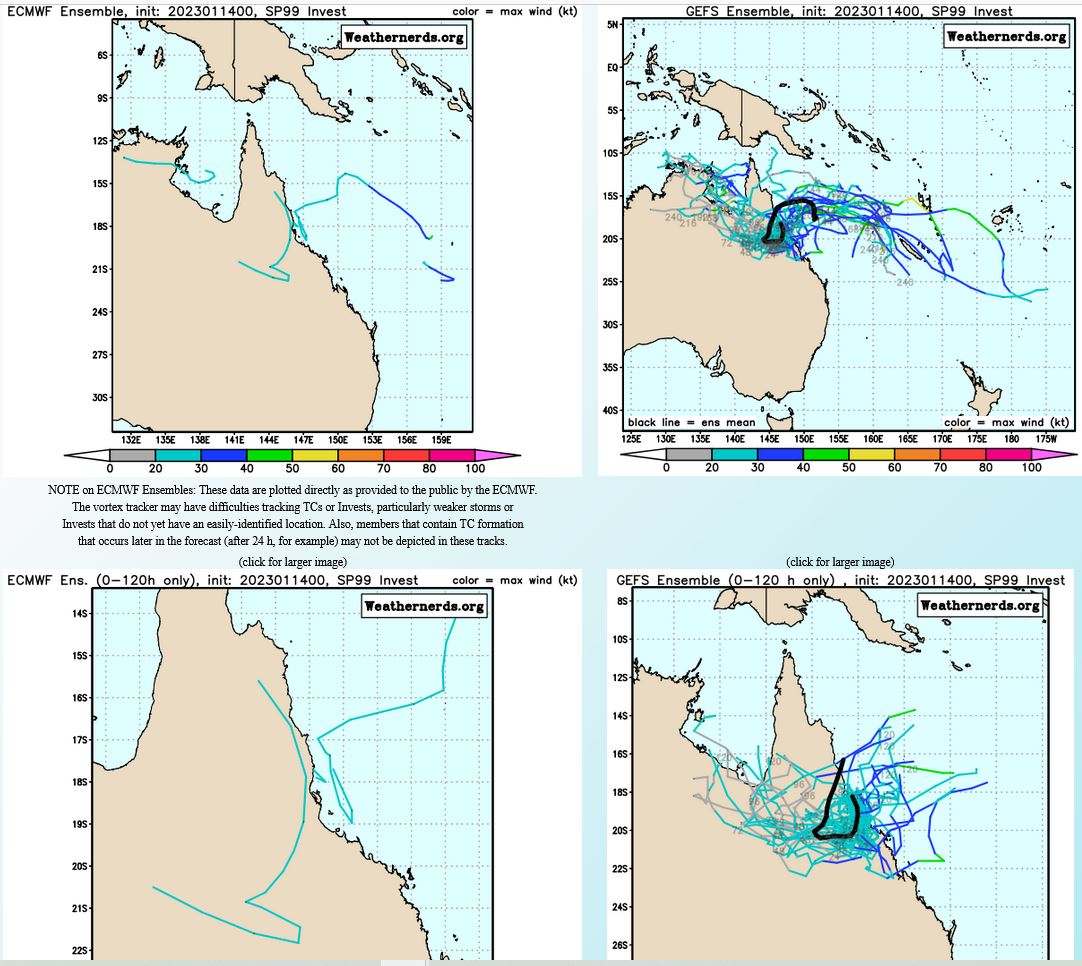

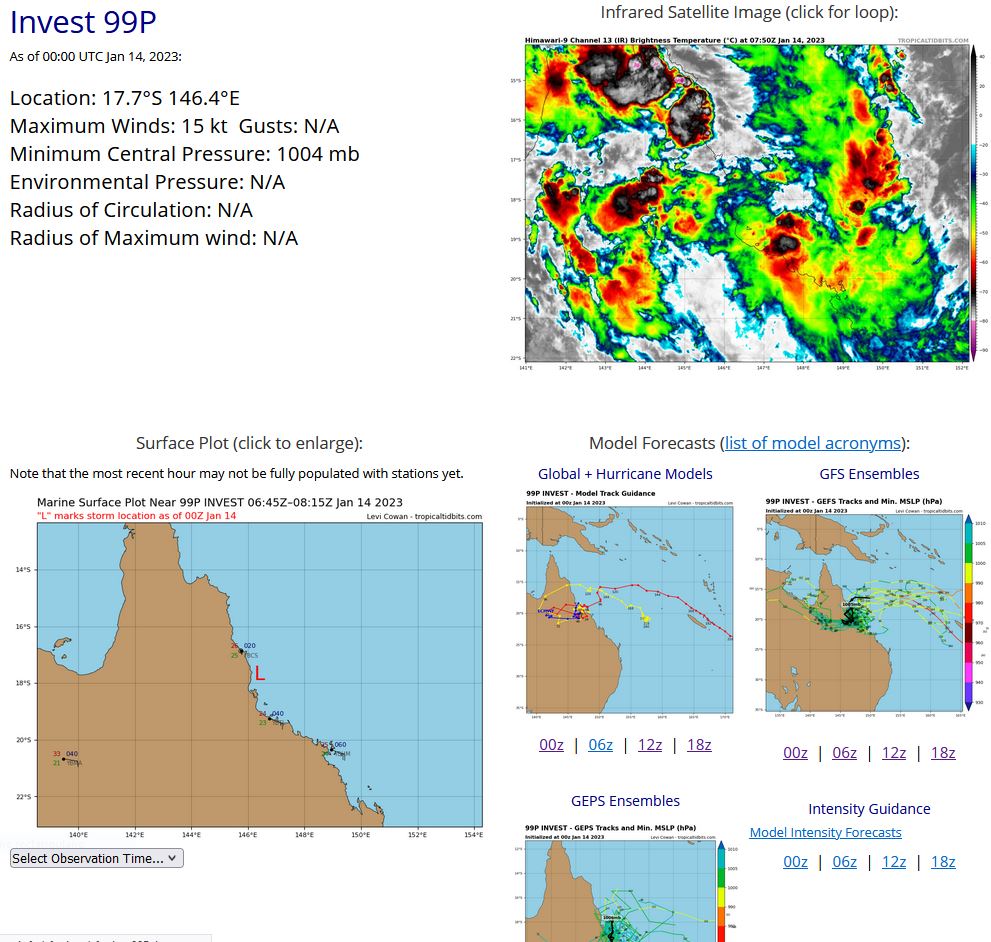

SOUTH PACIFIC OCEAN: INVEST 99P. ESTIMATED LOCATION AND INTENSITY AT 14/06UTC.

Invest 97W//Invest 96S and Invest 90S//Invest 99P and Invest 98P// 10 day ECMWF storm tracks// 1406utc, 1930utc update

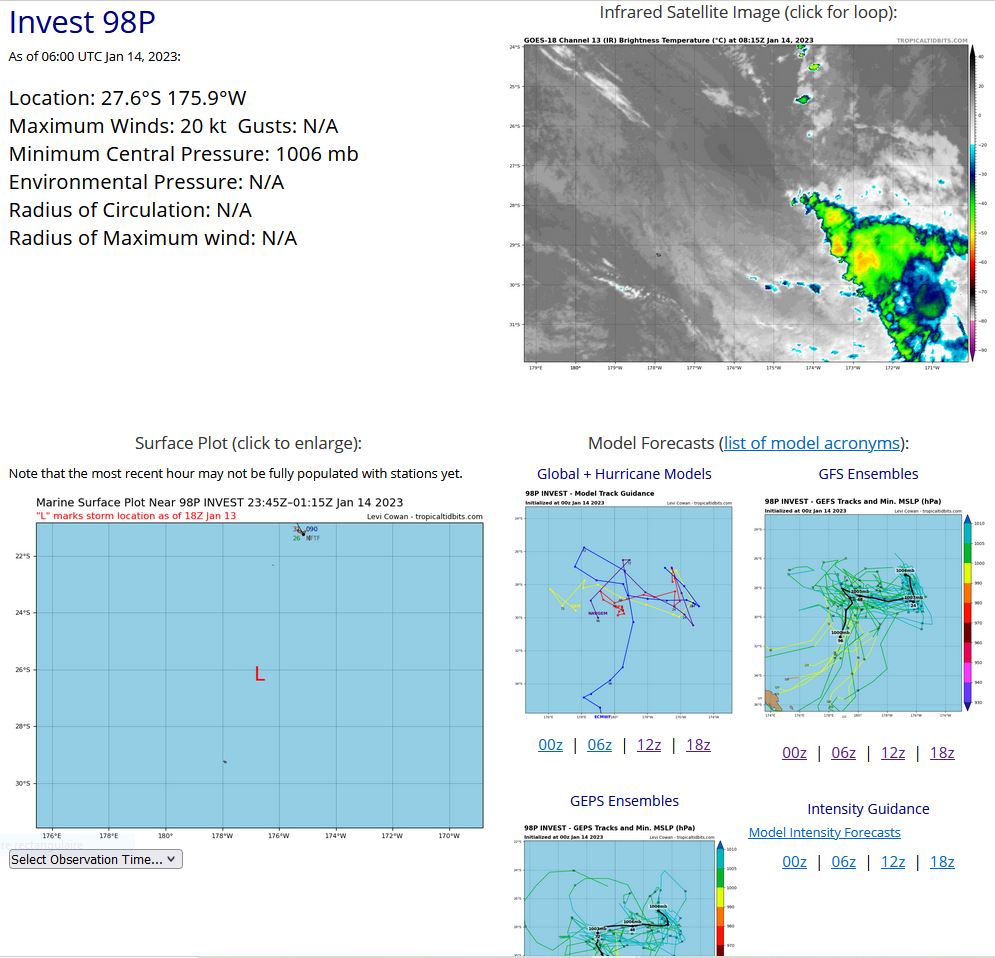

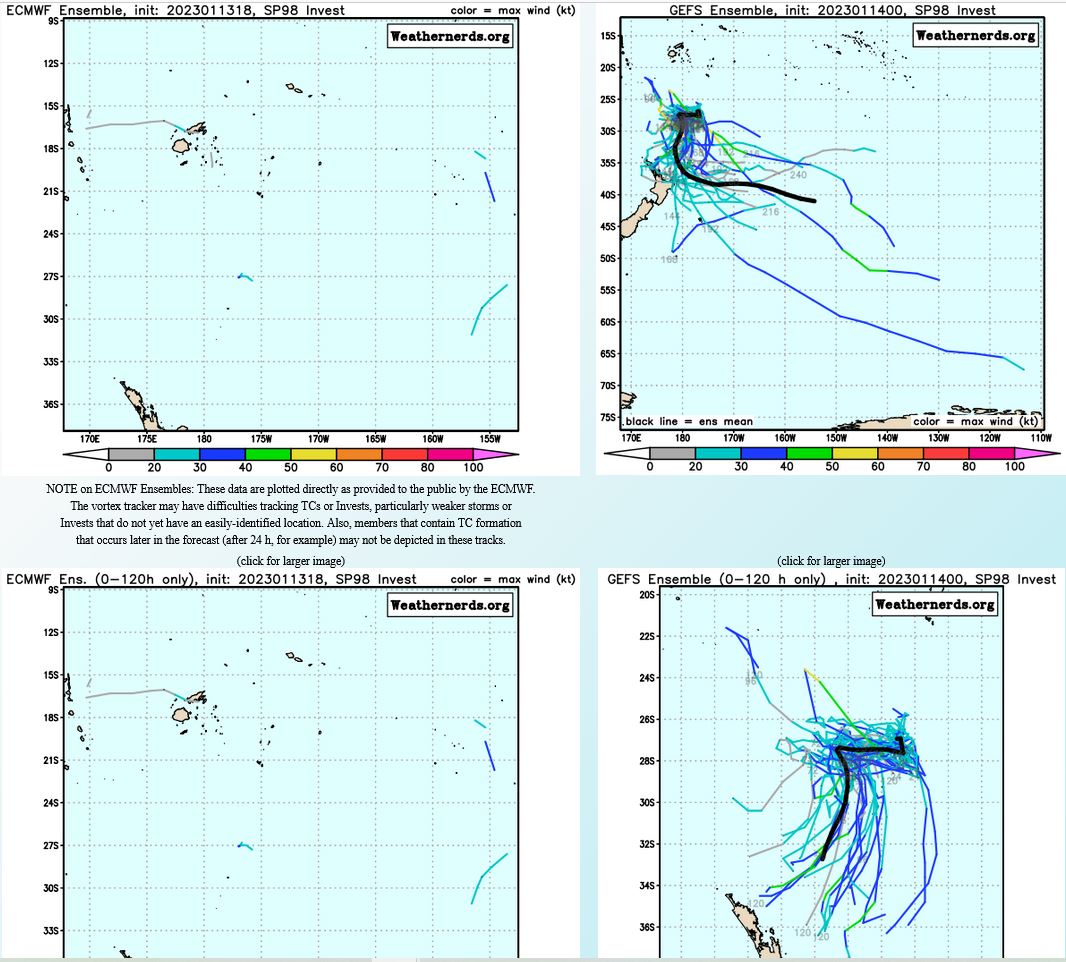

SOUTH PACIFIC OCEAN: INVEST 98P. ESTIMATED LOCATION AND INTENSITY AT 14/06UTC.

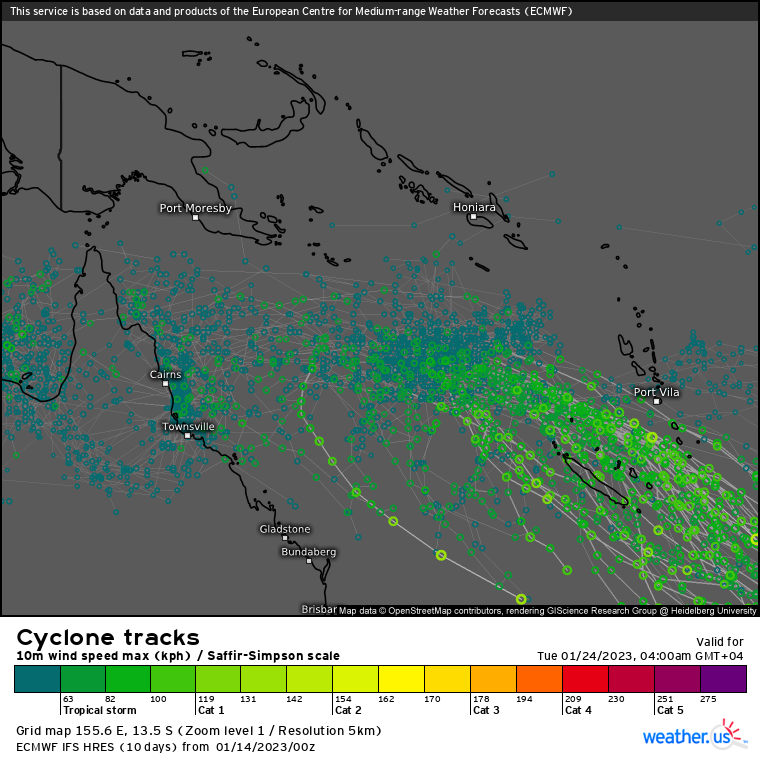

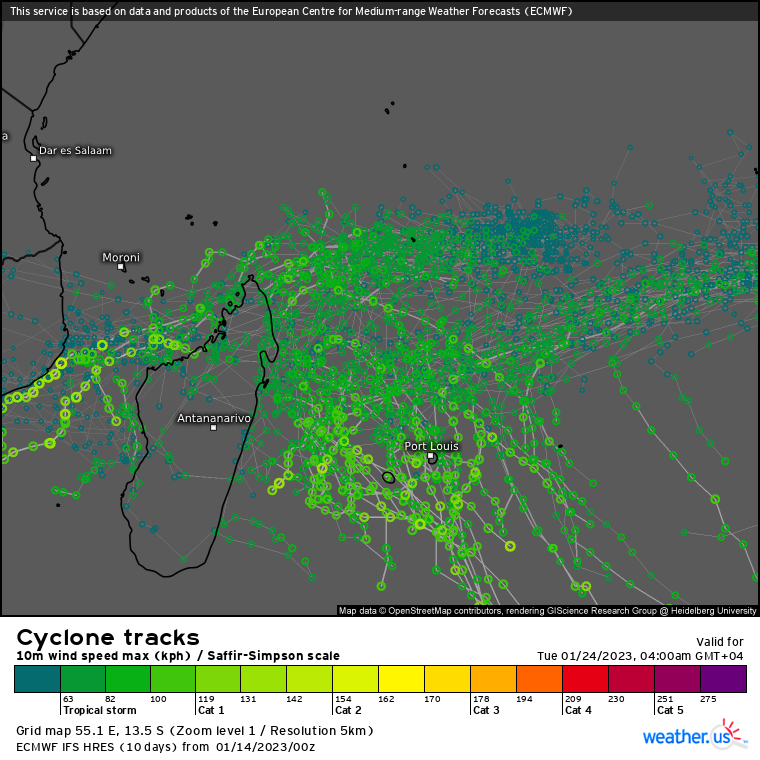

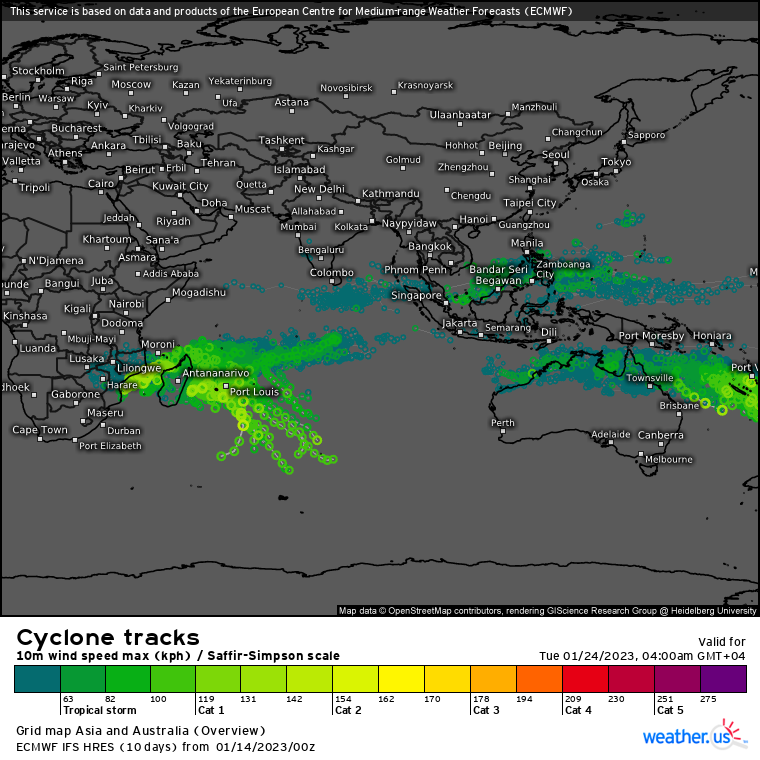

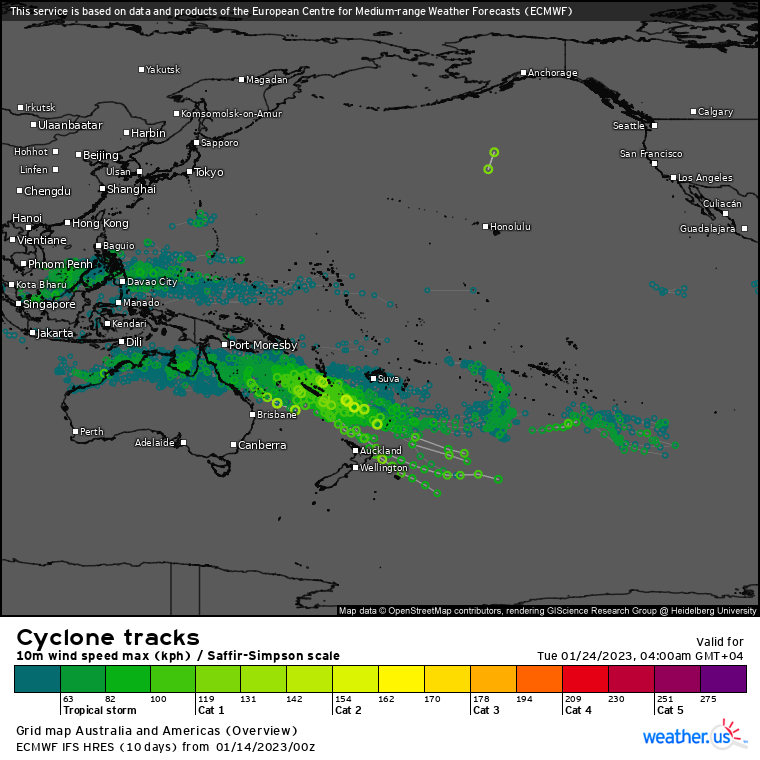

ECMWF ENSEMBLE AT 14/00UTC UP TO +240H.


ECMWF ENSEMBLE AT 14/00UTC UP TO +240H.

Rédigé par PATRICK HOAREAU le Saturday, January 14th 2023 à 13:12
