CLICK ON THE IMAGERIES BELOW TO GET THEM ENLARGED

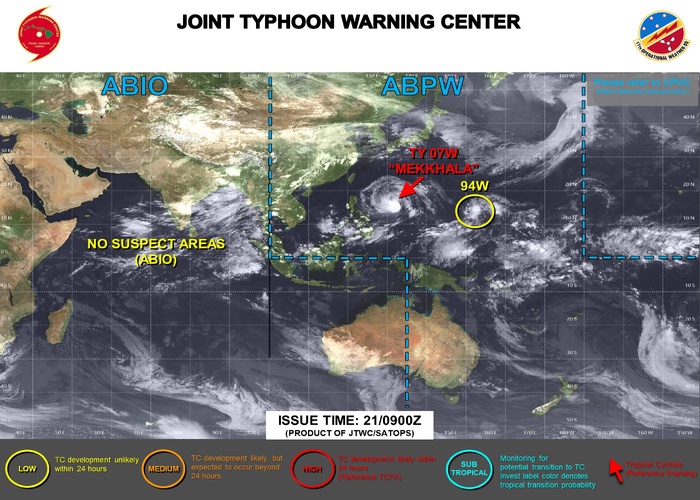

JTWC IS ISSUING 6 HOURLY WARNINGS AND 3 HOURLY SATELLITE BULLETINS ON 07W
WESTERN NORTH PACIFIC: TY 07W(MEKKHALA). WARNING 11 ISSUED BY JTWC @21/0900 UTC

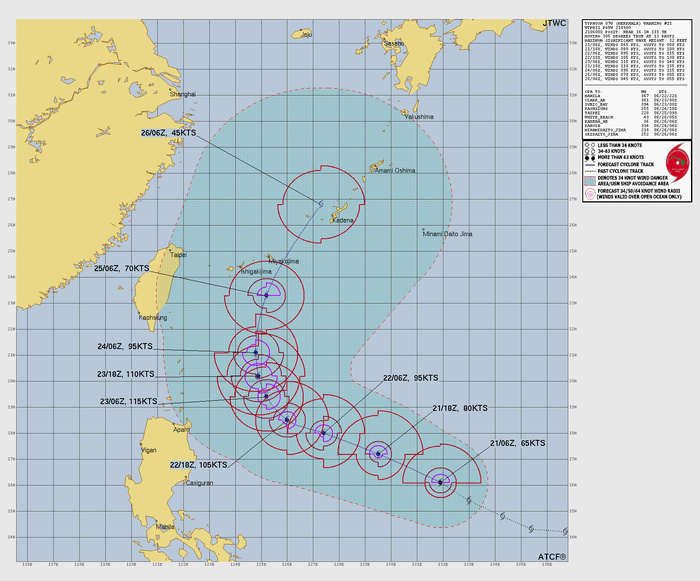

TC WARNING GRAPHIC
PROGNOSTIC REASONING
WDPN31 PGTW 210900
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TYPHOON 07W (MEKKHALA) WARNING NR 011//
RMKS/
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
SUMMARY:
INITIAL POSITION: 16.1N 131.9E
INITIAL INTENSITY: 65 KTS
GEOGRAPHIC REFERENCE: 665 NM SOUTH-SOUTHEAST OF KADENA AB
MOVEMENT PAST 6 HOURS: NORTHWESTWARD AT 13 KTS
SIGNIFICANT WAVE HEIGHT: 32 FEET
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION:

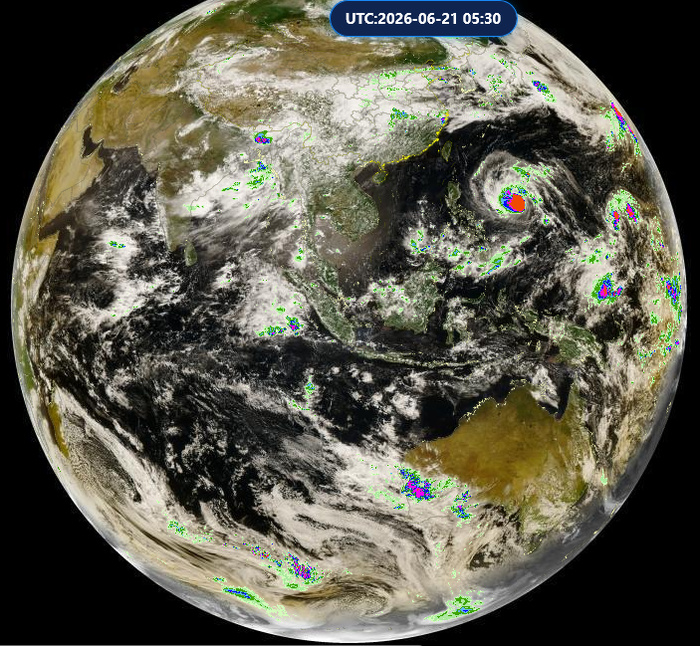

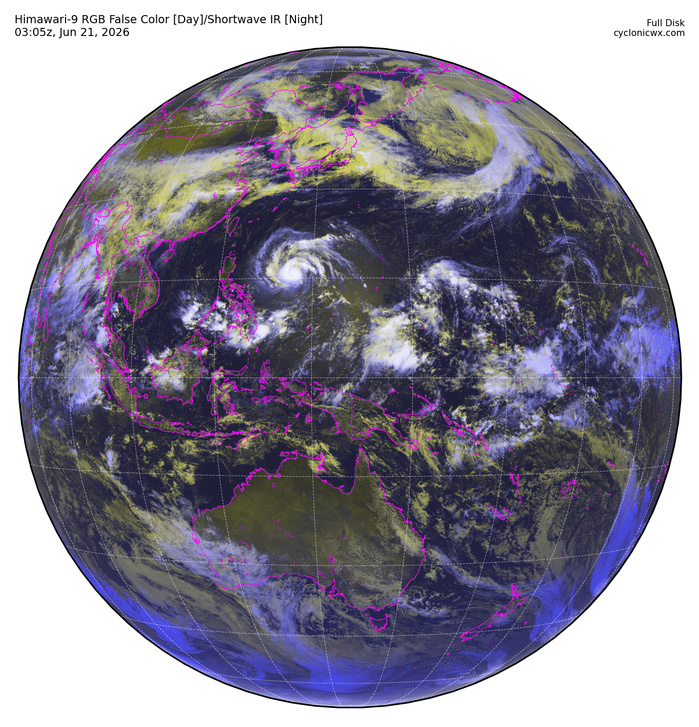

ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS TYPHOON (TY)
07W (MEKKHALA) WITH STRONG RADIAL OUTFLOW AND ACCOMPANYING CIRRUS
FILAMENTS AND WELL-DEFINED SPIRAL BANDS OF DEEP CONVECTION.
ANALYSIS OF ANIMATED BRIGHTNESS TEMPERATURE REVEALS SIGNIFICANTLY
COOLING CLOUD TOPS AND A SYMMETRICAL CENTRAL DENSE OVERCAST (CDO).
ENVIRONMENTAL ANALYSIS REVEALS A HIGHLY FAVORABLE ENVIRONMENT,
CHARACTERIZED BY LOW (10-15 KTS) VERTICAL WIND SHEAR (VWS), WARM
(29-30 C) SEA SURFACE TEMPERATURES (SST), AND STRONG RADIAL OUTFLOW
AIDED BY A POINT SOURCE ALOFT. THE INITIAL POSITION IS PLACED WITH
MEDIUM CONFIDENCE BASED ON ANIMATED MSI SUPPORTED BY THE 210504Z
PARTIAL AMSR2 MICROWAVE IMAGE. THE INITIAL INTENSITY OF 65 KTS IS
ASSESSED WITH LOW CONFIDENCE BASED ON THE CIMSS INTENSITY ESTIMATES
AND AGENCY FIXES LISTED BELOW.
INITIAL WIND RADII BASIS: ADJUSTED 34 KT AND 50 KT RADII USING THE
210034Z ASCAT DATA.
CURRENT STEERING MECHANISM: SUBTROPICAL RIDGE (STR) CENTERED TO THE
NORTH
AGENCY DVORAK AND AUTOMATED FIXES:
PGTW: T3.5 - 55 KTS
RJTD: T3.5 - 55 KTS
RCTP: T3.5 - 55 KTS
KNES: T4.0 - 65 KTS
CIMSS SATCON: 69 KTS AT 210700Z
CIMSS ADT: 74 KTS AT 210600Z
CIMSS AIDT: 70 KTS AT 210600Z
CIMSS D-MINT: 55 KTS AT 210442Z
CIMSS D-PRINT: 59 KTS AT 210700Z
FORECASTER ASSESSMENT OF CURRENT ENVIRONMENT: HIGHLY FAVORABLE
VWS: 10-15 KTS
SST: 29-30 CELSIUS
OUTFLOW: STRONG RADIAL
ANALYSIS CONFIDENCE:
INITIAL POSITION: MEDIUM
INITIAL INTENSITY: LOW
INITIAL WIND RADII: MEDIUM
3. FORECAST REASONING.
SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO
THE FORECAST FROM THE PREVIOUS WARNING.

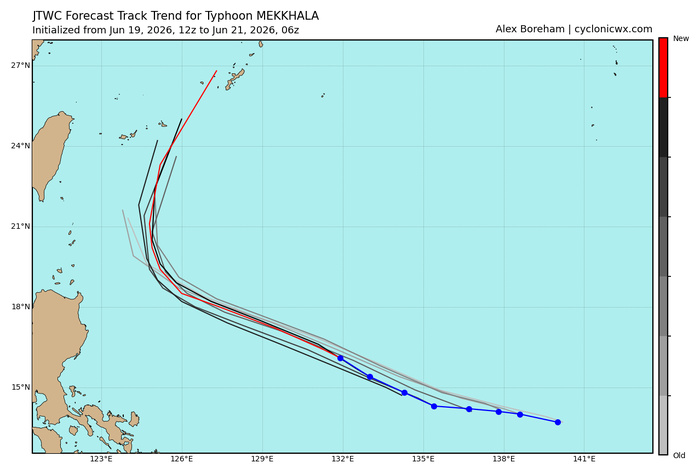

FORECAST DISCUSSION: TY 07W IS FORECAST TO CONTINUE TRACKING
NORTHWESTWARD FOR THE NEXT 36 HOURS WHILE IT REMAINS LOCATED ON THE
SOUTHERN PERIPHERY OF THE STEERING STR. BETWEEN TAU 36-48, 07W WILL
BEGIN TO ENCOUNTER A WEAKNESS IN THE RIDGE AND BEGIN TO CURVE
NORTH-NORTHWESTWARD. FROM TAU 48 TO TAU 72, MEKKHALA WILL ROUND THE
RIDGE AXIS, INDUCING A NORTH-NORTHEASTWARD TRAJECTORY FROM TAU 72

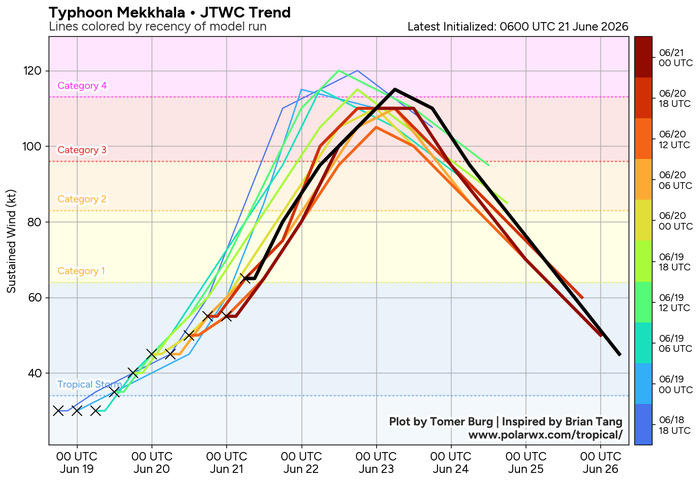

THROUGH THE END OF THE FORECAST. REGARDING INTENSITY, 07W IS
FORECAST TO RAPIDLY INTENSIFY (RI) WHILE IT REMAINS IN THE HIGHLY
FAVORABLE ENVIRONMENT. RI IS EXPECTED TO OCCUR FROM TAU 0 UNTIL TAU
24, FOLLOWED BY ADDITIONAL SIGNIFICANT INTENSIFICATION UNTIL
REACHING THE PEAK INTENSITY AT TAU 48. JUST BEFORE TAU 60, 07W WILL
ENTER A HOSTILE ENVIRONMENT, CHARACTERIZED BY HIGH (30-40 KTS) VWS
AND SIGNIFICANT DRY AIR, INDUCING DRASTIC WEAKENING. COOL WATER
UPWELLING IS ALSO POSSIBLE AROUND TAU 60 AS MEKKHALA SLOWS WHILE
ROUNDING THE RIDGE, FURTHER HASTENING THE WEAKENING TREND.

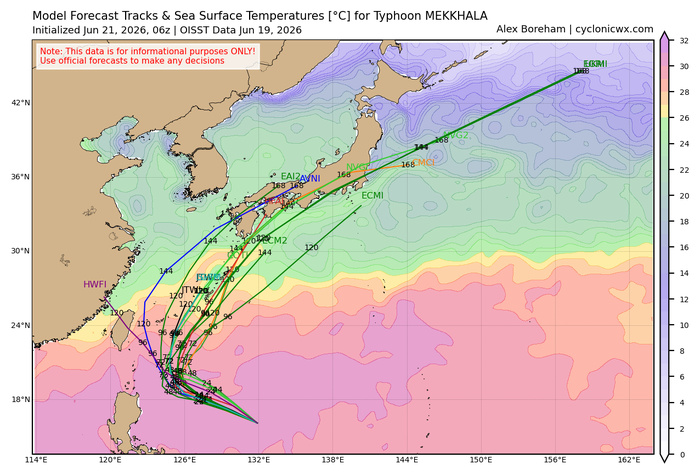

MODEL DISCUSSION: DETERMINISTIC MODEL TRACK GUIDANCE IS IN STRONG
AGREEMENT IN THE NEAR-TERM FORECAST, WITH MINIMAL CROSS-TRACK OR
ALONG-TRACK SPREAD THROUGH TAU 60. FOLLOWING TAU 60, SIGNIFICANT
ALONG-TRACK SPREAD BECOMES EVIDENT AS MODELS STRUGGLE TO INTERPRET
THE RECURVATURE SCENARIO AND ASSOCIATED TRANSLATION SPEEDS. AS A
RESULT, THE JTWC TRACK FORECAST IS PLACED WITH HIGH CONFIDENCE FROM
TAU 0-72 AND MEDIUM CONFIDENCE FROM TAU 72-120. RELIABLE INTENSITY
GUIDANCE IS IMPROVING IN TERMS OF GENERAL AGREEMENT, BUT STILL
DEPICTING A LARGE RANGE BETWEEN 70-130 KTS AT THE TIME OF
FORECASTED PEAK INTENSITY. HAFS AND COAMPS-TC (GFS BOUNDARY

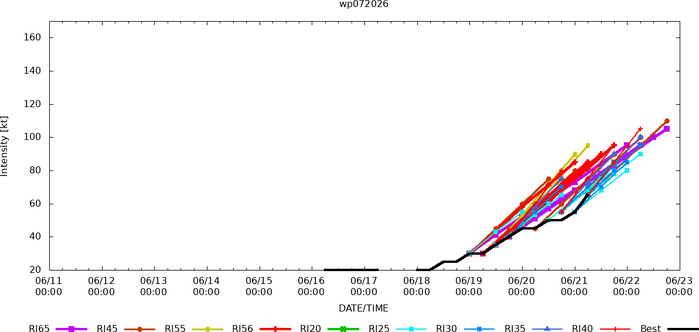

CONDITIONS) DEPICT RI, IN ADDITION TO SEVERAL JTWC RI AIDS REACHING
THRESHOLD. THE CIMSS AI-RI FORECAST HAS INCREASED TO 55 PERCENT
PROBABILITY OF 25 KT INTENSIFICATION WITHIN 24 HOURS, AND TO 48
PERCENT PROBABILITY OF 30 KT INTENSIFICATION WITHIN 24 HOURS,
FURTHER SUPPORTING THE JTWC RI FORECAST. GUIDANCE DISAGREES
SIGNIFICANTLY REGARDING THE WEAKENING TREND IN THE LATE-TERM
FORECAST. THE JTWC INTENSITY FORECAST LIES CLOSE TO THE HAFS
SOLUTION WITH MEDIUM CONFIDENCE FROM TAU 0-72 AND LOW CONFIDENCE
FROM TAU 72-120.
FORECAST CONFIDENCE:
TRACK 00-72 HR: HIGH
TRACK 72-120 HR: MEDIUM
INTENSITY 00-72 HR: MEDIUM
INTENSITY 72-120 HR: LOW//
NNNN
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/PROGNOSTIC REASONING FOR TYPHOON 07W (MEKKHALA) WARNING NR 011//
RMKS/
1. FOR METEOROLOGISTS.
2. 6 HOUR SUMMARY AND ANALYSIS.
SUMMARY:
INITIAL POSITION: 16.1N 131.9E
INITIAL INTENSITY: 65 KTS
GEOGRAPHIC REFERENCE: 665 NM SOUTH-SOUTHEAST OF KADENA AB
MOVEMENT PAST 6 HOURS: NORTHWESTWARD AT 13 KTS
SIGNIFICANT WAVE HEIGHT: 32 FEET
SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION:
ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS TYPHOON (TY)
07W (MEKKHALA) WITH STRONG RADIAL OUTFLOW AND ACCOMPANYING CIRRUS
FILAMENTS AND WELL-DEFINED SPIRAL BANDS OF DEEP CONVECTION.
ANALYSIS OF ANIMATED BRIGHTNESS TEMPERATURE REVEALS SIGNIFICANTLY
COOLING CLOUD TOPS AND A SYMMETRICAL CENTRAL DENSE OVERCAST (CDO).
ENVIRONMENTAL ANALYSIS REVEALS A HIGHLY FAVORABLE ENVIRONMENT,
CHARACTERIZED BY LOW (10-15 KTS) VERTICAL WIND SHEAR (VWS), WARM
(29-30 C) SEA SURFACE TEMPERATURES (SST), AND STRONG RADIAL OUTFLOW
AIDED BY A POINT SOURCE ALOFT. THE INITIAL POSITION IS PLACED WITH
MEDIUM CONFIDENCE BASED ON ANIMATED MSI SUPPORTED BY THE 210504Z
PARTIAL AMSR2 MICROWAVE IMAGE. THE INITIAL INTENSITY OF 65 KTS IS
ASSESSED WITH LOW CONFIDENCE BASED ON THE CIMSS INTENSITY ESTIMATES
AND AGENCY FIXES LISTED BELOW.
INITIAL WIND RADII BASIS: ADJUSTED 34 KT AND 50 KT RADII USING THE
210034Z ASCAT DATA.
CURRENT STEERING MECHANISM: SUBTROPICAL RIDGE (STR) CENTERED TO THE
NORTH
AGENCY DVORAK AND AUTOMATED FIXES:
PGTW: T3.5 - 55 KTS
RJTD: T3.5 - 55 KTS
RCTP: T3.5 - 55 KTS
KNES: T4.0 - 65 KTS
CIMSS SATCON: 69 KTS AT 210700Z
CIMSS ADT: 74 KTS AT 210600Z
CIMSS AIDT: 70 KTS AT 210600Z
CIMSS D-MINT: 55 KTS AT 210442Z
CIMSS D-PRINT: 59 KTS AT 210700Z
FORECASTER ASSESSMENT OF CURRENT ENVIRONMENT: HIGHLY FAVORABLE
VWS: 10-15 KTS
SST: 29-30 CELSIUS
OUTFLOW: STRONG RADIAL
ANALYSIS CONFIDENCE:
INITIAL POSITION: MEDIUM
INITIAL INTENSITY: LOW
INITIAL WIND RADII: MEDIUM
3. FORECAST REASONING.
SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO
THE FORECAST FROM THE PREVIOUS WARNING.
FORECAST DISCUSSION: TY 07W IS FORECAST TO CONTINUE TRACKING
NORTHWESTWARD FOR THE NEXT 36 HOURS WHILE IT REMAINS LOCATED ON THE
SOUTHERN PERIPHERY OF THE STEERING STR. BETWEEN TAU 36-48, 07W WILL
BEGIN TO ENCOUNTER A WEAKNESS IN THE RIDGE AND BEGIN TO CURVE
NORTH-NORTHWESTWARD. FROM TAU 48 TO TAU 72, MEKKHALA WILL ROUND THE
RIDGE AXIS, INDUCING A NORTH-NORTHEASTWARD TRAJECTORY FROM TAU 72
THROUGH THE END OF THE FORECAST. REGARDING INTENSITY, 07W IS
FORECAST TO RAPIDLY INTENSIFY (RI) WHILE IT REMAINS IN THE HIGHLY
FAVORABLE ENVIRONMENT. RI IS EXPECTED TO OCCUR FROM TAU 0 UNTIL TAU
24, FOLLOWED BY ADDITIONAL SIGNIFICANT INTENSIFICATION UNTIL
REACHING THE PEAK INTENSITY AT TAU 48. JUST BEFORE TAU 60, 07W WILL
ENTER A HOSTILE ENVIRONMENT, CHARACTERIZED BY HIGH (30-40 KTS) VWS
AND SIGNIFICANT DRY AIR, INDUCING DRASTIC WEAKENING. COOL WATER
UPWELLING IS ALSO POSSIBLE AROUND TAU 60 AS MEKKHALA SLOWS WHILE
ROUNDING THE RIDGE, FURTHER HASTENING THE WEAKENING TREND.
MODEL DISCUSSION: DETERMINISTIC MODEL TRACK GUIDANCE IS IN STRONG
AGREEMENT IN THE NEAR-TERM FORECAST, WITH MINIMAL CROSS-TRACK OR
ALONG-TRACK SPREAD THROUGH TAU 60. FOLLOWING TAU 60, SIGNIFICANT
ALONG-TRACK SPREAD BECOMES EVIDENT AS MODELS STRUGGLE TO INTERPRET
THE RECURVATURE SCENARIO AND ASSOCIATED TRANSLATION SPEEDS. AS A
RESULT, THE JTWC TRACK FORECAST IS PLACED WITH HIGH CONFIDENCE FROM
TAU 0-72 AND MEDIUM CONFIDENCE FROM TAU 72-120. RELIABLE INTENSITY
GUIDANCE IS IMPROVING IN TERMS OF GENERAL AGREEMENT, BUT STILL
DEPICTING A LARGE RANGE BETWEEN 70-130 KTS AT THE TIME OF
FORECASTED PEAK INTENSITY. HAFS AND COAMPS-TC (GFS BOUNDARY
CONDITIONS) DEPICT RI, IN ADDITION TO SEVERAL JTWC RI AIDS REACHING
THRESHOLD. THE CIMSS AI-RI FORECAST HAS INCREASED TO 55 PERCENT
PROBABILITY OF 25 KT INTENSIFICATION WITHIN 24 HOURS, AND TO 48
PERCENT PROBABILITY OF 30 KT INTENSIFICATION WITHIN 24 HOURS,
FURTHER SUPPORTING THE JTWC RI FORECAST. GUIDANCE DISAGREES
SIGNIFICANTLY REGARDING THE WEAKENING TREND IN THE LATE-TERM
FORECAST. THE JTWC INTENSITY FORECAST LIES CLOSE TO THE HAFS
SOLUTION WITH MEDIUM CONFIDENCE FROM TAU 0-72 AND LOW CONFIDENCE
FROM TAU 72-120.
FORECAST CONFIDENCE:
TRACK 00-72 HR: HIGH
TRACK 72-120 HR: MEDIUM
INTENSITY 00-72 HR: MEDIUM
INTENSITY 72-120 HR: LOW//
NNNN

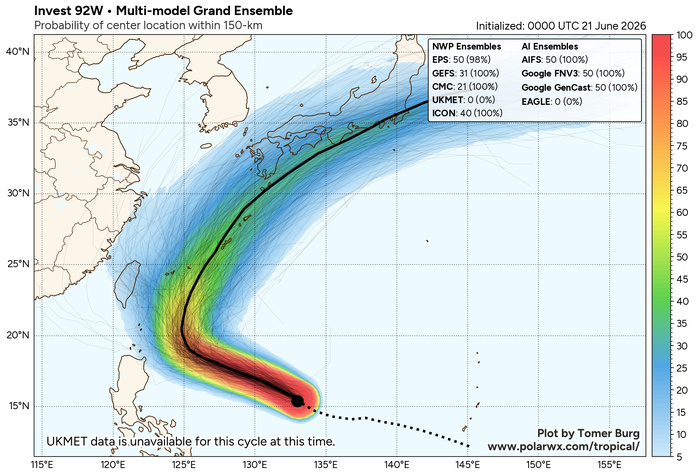

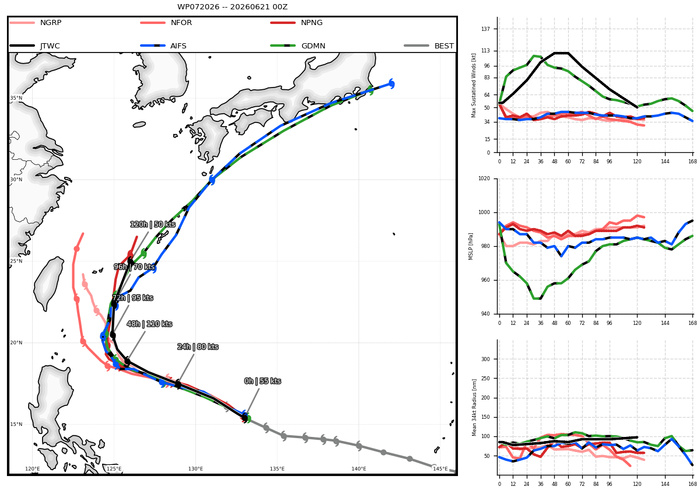

AI Model Track Forecasts

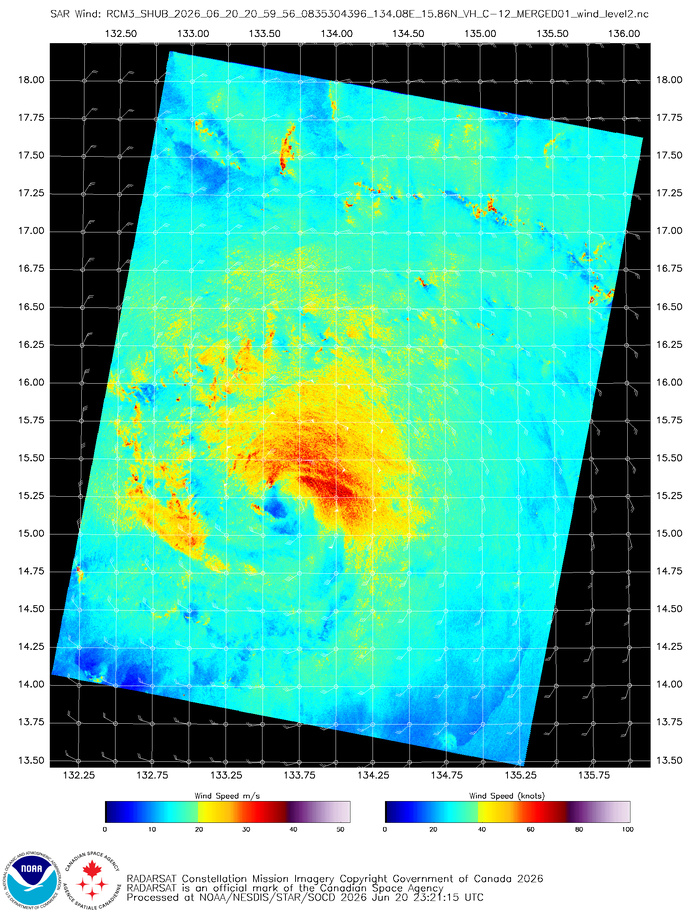

RIPA Forecast
Platform: RCM-3
Acquisition Date: 2026-06-20 20:59:56 UTC
Storm Name: WP072026 / MEKKHALA
Storm ID: WP07
Storm Center Longitude: 133.650
Storm Center Latitude: 15.200
Incidence Angle (Degrees): 35.760
Quadrant 1 NE VMax (kts): 64.01
Quadrant 2 SE VMax (kts): 53.84
Quadrant 3 SW VMax (kts): 50.84
Quadrant 4 NW VMax (kts): 56.09
RMax (nmi): 12.00 - 40.00
Acquisition Date: 2026-06-20 20:59:56 UTC
Storm Name: WP072026 / MEKKHALA
Storm ID: WP07
Storm Center Longitude: 133.650
Storm Center Latitude: 15.200
Incidence Angle (Degrees): 35.760
Quadrant 1 NE VMax (kts): 64.01
Quadrant 2 SE VMax (kts): 53.84
Quadrant 3 SW VMax (kts): 50.84
Quadrant 4 NW VMax (kts): 56.09
RMax (nmi): 12.00 - 40.00
Radius of Maximum Wind (RMW)

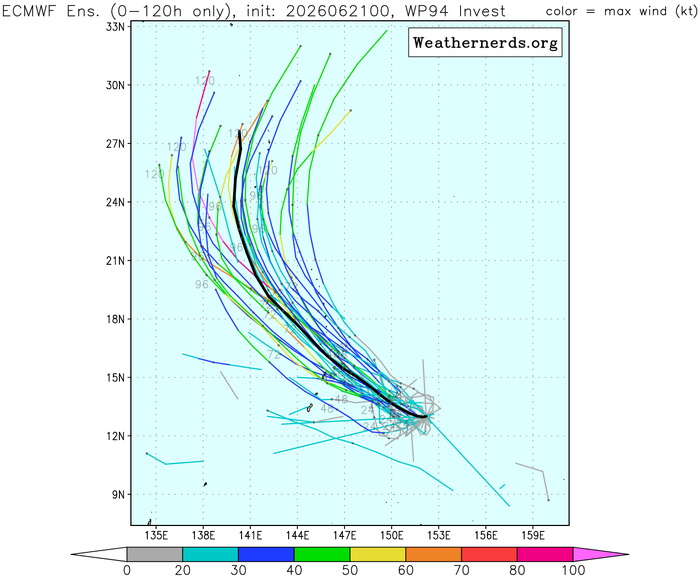

INVEST 94W : ADVISORY ISSUED BY JTWC @ 21/0700 UTC
AN AREA OF CONVECTION (INVEST 94W) HAS PERSISTED NEAR 13.0N 152.2E, APPROXIMATELY 441 NM EAST OF GUAM. ANIMATED ENHANCED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS FLARING CONVECTION ASSOCIATED WITH A POORLY DEFINED BUT CONSOLIDATING LOW-LEVEL CIRCULATION CENTER (LLCC) WITH ASSOCIATED BURSTS OF DEEP CONVECTION NEAR THE CENTER. ENVIRONMENTAL ANALYSIS FOR THIS AREA REVEALS A FAVORABLE AREA FOR DEVELOPMENT WITH LOW (5-10 KTS) VERTICAL WIND SHEAR, WARM (29-30 C) SEA SURFACE TEMPERATURES, AND MODERATE POLEWARD OUTFLOW IN THE UPPER LEVELS. GLOBAL ENSEMBLES ARE IN AGREEMENT WITH VERY SLOW DEVELOPMENT AND INTENSIFICATION IN THE NEAR TERM AS THE SYSTEM TRACKS NORTHWESTWARD. GLOBAL DETERMINISTIC MODELS SHOW VERY MINIMAL DEVELOPMENT OF THE SYSTEM, WITH THE EXCEPTION OF ECMWF SHOWING ELEVATED WINDS FOR A SHORT PERIOD BEFORE WEAKENING. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED AT 13 TO 18 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE NEAR 1009 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS IS LOW.
